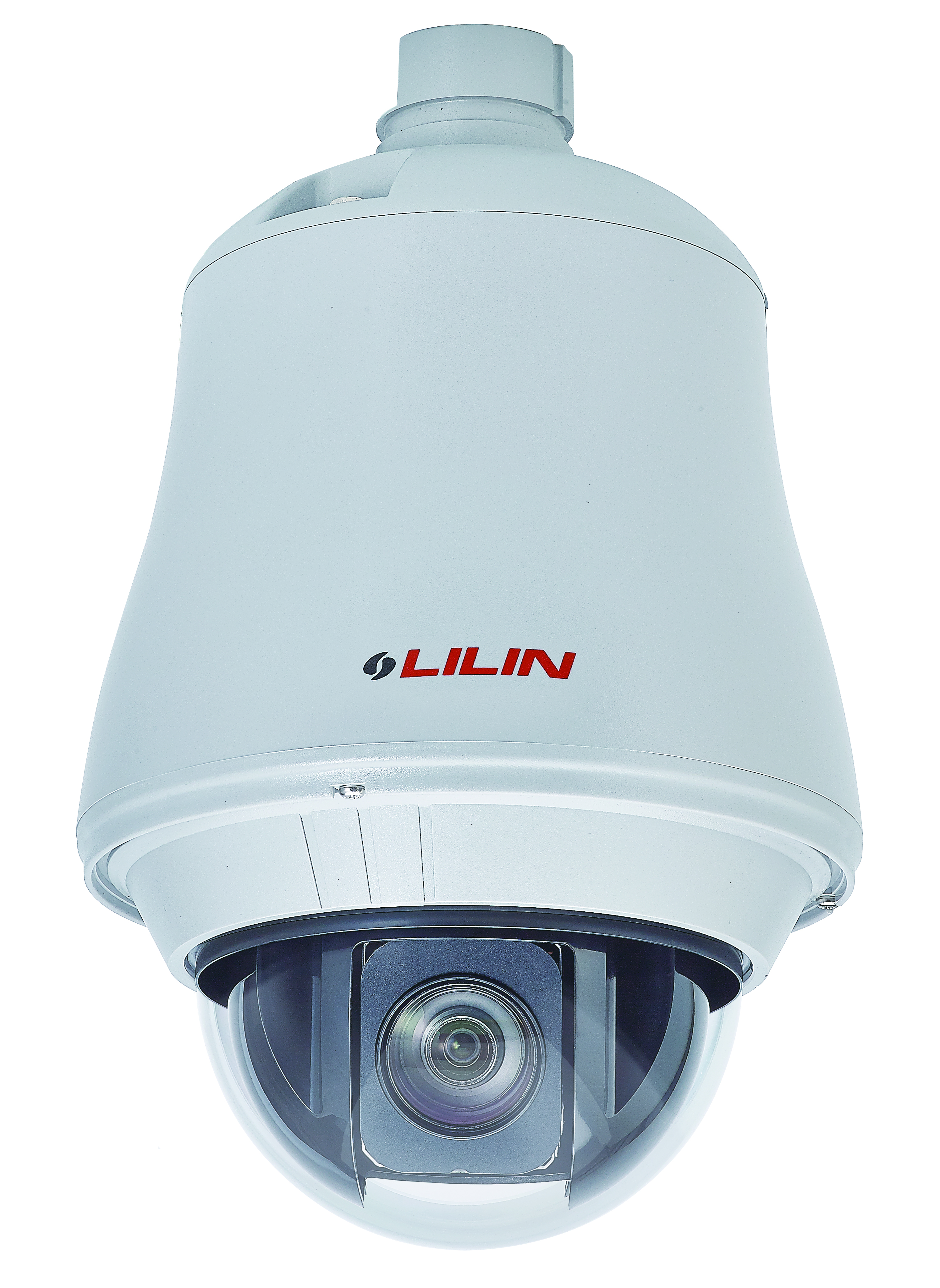

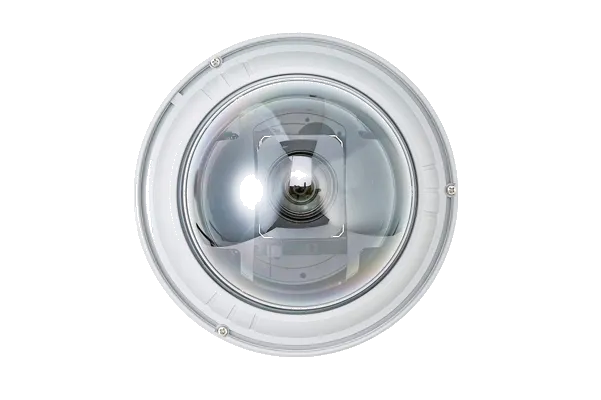

18X Day & Night 1080P HD WDR Speed Dome IP Camera (Outdoor)
Model：IPS4184E / IPS4188E
Features
- 18X Optical Zoom Lens(4.7 − 84.6mm)
- True H.264 AVC/MPEG-4 part 10 real-time video compression
- H.264 and Motion JPEG multi-profile video streaming
- Wide Dynamic Range
- Digital Noise Reduction
- 2-way audio supported
- Sense Up function
- ONVIF supported
- Weatherproof IP 66
Description
The IPS4184E / IPS4188E is outdoor fitted Day & Night 1080P HD WDR Speed Dome IP Camera that in compliance with LILIN’s already established HD PTZ series of cameras. The camera can be powered through High Power over Ethernet, which complies with the PoE standard IEEE 802.3at. The high-speed domes are capable of streaming HD video at up to 30 FPS. Featuring LILIN’s Wide Dynamic Range (WDR) feature, the IPS4184E / IPS4188E captures highlights and shadows simultaneously, eliminating pixilation and smear. Combine this with digital noise reduction technology and adaptive tone reproduction and the contrast of images in bright or dark areas is dramatically improved. Capable of making 360° continuous rotations, users can accurately position the camera to identify specific targets. The 18x optical zoom capacity give the IPS4184E / IPS4188E an impressive range.
With a focal length of 4.7-84.6mm and a compact design, the IPS4184E / IPS4188E is ideal for numerous applications. Further features include privacy zones, comprehensive scheduling, 2-way audio, weighted mode, alarm activation by motion detection.
Specifications
| Model | IPS4184E |
| Image Sensor/Sensor type | 1/2.8 Type Exmor CMOS Sensor |
| Effective pixels | Effective pixels : 2096 (H) × 1561 (V) = 3,269,760 (pixels) ; Total number of pixel 2144 (H) × 1588 (V) = 3,404,672 (pixels) |
| Video Compression | H.264 , Motion JPEG |
| Resolution | 1080P(1920 x 1080), 720P(1280 x 720), D1(720 x 480), CIF(352 x 240) |
| Frame Rates | H.264 : up to 30 FPS at 1080P(1920 x 1080) ; Motion JPEG : up to 30 FPS at D1(720 x 480 ) |
| Lens | 4.7 mm (WIDE) to 84.6.0 mm(TELE) |
| Iris | F1.6 − 360 , Close ; Auto / Manual |
| Angle of View | 54.1 degrees (WIDE end), approx. 3.2 degrees (TELE end), (1080P mode) |
| Auto Focus | Auto / One Push Focus |
| Zoom ratio | 18X Optical zoom |
| Minimum object distance | 10 cm (WIDE end), 1.5m (TELE end) |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast |
| Video bitrate | 128 Kbps to 5 Mbps ; Frame rate and bitrate controllable on-the-fly ; VBR / CBR / GOP supported |
| Scanning System | Progressive scan |
| IR cut filter | Auto / Manual |
| Min. illumination/Low Light Mode (Colour) | 0.1 lux (F1.6, 50IRE) |
| White Balance | ATW / AWC / Manual (1700K − 11000K) |
| Back Light Compensation (BLC) | OFF / ON |
| Shutter Time | 1/1 to 1/10,000 |
| Sense Up | OFF / ON |
| Sense Up+ | Day / Night / Auto / Schedule |
| Auto Gain Control | 0 − 28dB (12 Step) |
| 3D Noise Reduction | (2D) OFF / LEVEL=1 − 5 |
| 2D WDR | OFF / ON |
| Sharpness | Adjustable |
| Privacy Masking | OFF / ON ( Up to 14 area) |
| Other functions | OFF / Mirror |
| Live video | CVBS 1.0 Vp-p / 75 Ω BNC |
| Panning Range | 360° Endless |
| Panning Speed | Manual approx. 0.15°/s − 120°/s 8 Steps, Preset approx. 1°/s − 255°/s, Alarm Trigger Speed 360°/s |
| Panning Mode | Manual , auto , manual position , sequential position |
| Tilting Range | - 6° − + 96° |
| Tilting Speed | Manual approx. 0.15°/s − 120°/s 8 Steps, Preset approx. 1°/s − 255°/s, Alarm Trigger Speed 360°/s |
| Tilting Mode | Manual , auto , manual position , sequential position |
| Minimum Aperture Ratio | 1 : 1.6 (Wide) − 3.5 (Tele) |
| Control Function | Pan and Tilt / Zoom and Focus / Iris and ICR / 128 Preset Position / Home Position |
| Zoom Speed | Slow / MID. / Fast Selectable [ Fast : Approx. 5.0 Second( Tele to Wide) in Manual Mode ] |
| Focus Speed | Slow / MID. / Fast Selectable [ Fast : Approx. 5.0 Second ( Far to Near ) in Manual Mode ] |
| Exposure Mode | Auto / Manual |
| Auto Mode | OFF / AUTO / SEQ / TOUR |
| PTZ Control | Pan , tilt , zoom in / out , absolute position, and video-click-n-move |
| PTZ preset scheduling | Yes, via web interface |
| Schedule Setting | OFF / Auto mode / Preset Position |
| Encryption | Base64 HTTP encryption |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| IP address filter | Yes |
| Multi IP address | Yes |
| Users | 8 simultaneous users |
| OSD (On-Screen Display) | Text overlay for date, time, and camera name |
| Alarm event triggers | Image upload over FTP and E-mail by alarm / motion detection |
| Alarm event actions | Yes |
| CPU | Embedded SoC ARM11, 528MHz, 256MB DDR2, 256MB flash memory |
| Firmware | Firmware update via HTTP ; Firmware available at web site |
| Network Interface/Ethernet | 10Mbps / 100Mbps , RJ-45 |
| OS requirement | Windows 2000 , Windows XP , Windows Vista, Windows 7 |
| Web browser | Windows Internet Explorer 6.0 or above |
| CPU requirement | intel pentium 4 1.8GHz or above |
| RAM requirement | 1GB or above, Independent Display Card |
| Protocols | IP, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, Telnet, RTSP, RTCP, ONVIF, ICMP, IGMP |
| Mobile phone | iPhone, iPad, and Android support |
| Video Management | ONVIF & LILIN HTTPAPI ; CMX 3.6 / Navigator 3.8 support |
| Video Display | LILIN Universal ActiveX & LILIN Java Applet |
| OS | Embedded Linux 2.6.32 |
| Audio | Two-way Audio, G.711 / PCM |
| SD Card (recording) | Support Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| Alarm Input / output | 6 Input (TTL 5Vdc) , 2 Output (0.5A 120Vac,1A 24Vac) |
| IP Rating | IP66 |
| Operating temperature | -10°C − + 50°C ( 14°F − 122°F )／PoE+ ; -40°C − + 50°C ( 40°F − 122°F )／AC |
| Operating humidity | 0% − 90% |
| Blower control/Fan activation | On: 35°C, Off: 25°C |
| Heater control/Heater activation | On: 15°C, Off: 25°C |
| Dimensions | 332 mm (H) x 210 mm (V) |
| Weight | 3200 g |
| Power Supply | AC24V。PoE+ |
| Power Consumption | 37W (with Heater) ; 14W (not Heater) |
| Model | IPS4188E |
| Image Sensor/Sensor type | 1/2.8 Type Exmor CMOS Sensor |
| Effective pixels | Effective pixels : 2096 (H) × 1561 (V) = 3,269,760 (pixels) ; Total number of pixel 2144 (H) × 1588 (V) = 3,404,672 (pixels) |
| Video Compression | H.264 , Motion JPEG |
| Resolution | 1080P(1920 x 1080), 720P(1280 x 720), D1(720 x 480), CIF(352 x 240) |
| Frame Rates | H.264 : up to 30 FPS at 1080P(1920 x 1080) ; Motion JPEG : up to 30 FPS at D1(720 x 480 ) |
| Lens | 4.7 mm (WIDE) to 84.6.0 mm(TELE) |
| Iris | F1.6 − 360 , Close ; Auto / Manual |
| Angle of View | 54.1 degrees (WIDE end), approx. 3.2 degrees (TELE end), (1080P mode) |
| Auto Focus | Auto / One Push Focus |
| Zoom ratio | 18X Optical zoom |
| Minimum object distance | 10 cm (WIDE end), 1.5m (TELE end) |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast |
| Video bitrate | 128 Kbps to 5 Mbps ; Frame rate and bitrate controllable on-the-fly ; VBR / CBR / GOP supported |
| Scanning System | Progressive scan |
| IR cut filter | Auto / Manual |
| Min. illumination/Low Light Mode (Colour) | 0.1 lux (F1.6, 50IRE) |
| White Balance | ATW / AWC / Manual (1700K − 11000K) |
| Back Light Compensation (BLC) | OFF / ON |
| Shutter Time | 1/1 to 1/10,000 |
| Sense Up | OFF / ON |
| Sense Up+ | Day / Night / Auto / Schedule |
| Auto Gain Control | 0 − 28dB (12 Step) |
| 3D Noise Reduction | (2D) OFF / LEVEL=1 − 5 |
| 2D WDR | OFF / ON |
| Sharpness | Adjustable |
| Privacy Masking | OFF / ON ( Up to 14 area) |
| Other functions | OFF / Mirror |
| Live video | CVBS 1.0 Vp-p / 75 Ω BNC |
| Panning Range | 360° Endless |
| Panning Speed | Manual approx. 0.15°/s − 120°/s 8 Steps, Preset approx. 1°/s − 255°/s, Alarm Trigger Speed 360°/s |
| Panning Mode | Manual , auto , manual position , sequential position |
| Tilting Range | - 6° − + 96° |
| Tilting Speed | Manual approx. 0.15°/s − 120°/s 8 Steps, Preset approx. 1°/s − 255°/s, Alarm Trigger Speed 360°/s |
| Tilting Mode | Manual , auto , manual position , sequential position |
| Minimum Aperture Ratio | 1 : 1.6 (Wide) − 3.5 (Tele) |
| Control Function | Pan and Tilt / Zoom and Focus / Iris and ICR / 128 Preset Position / Home Position |
| Zoom Speed | Slow / MID. / Fast Selectable [ Fast : Approx. 5.0 Second( Tele to Wide) in Manual Mode ] |
| Focus Speed | Slow / MID. / Fast Selectable [ Fast : Approx. 5.0 Second ( Far to Near ) in Manual Mode ] |
| Exposure Mode | Auto / Manual |
| Auto Mode | OFF / AUTO / SEQ / TOUR |
| PTZ Control | Pan , tilt , zoom in / out , absolute position, and video-click-n-move |
| PTZ preset scheduling | Yes, via web interface |
| Schedule Setting | OFF / Auto mode / Preset Position |
| Encryption | Base64 HTTP encryption |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| IP address filter | Yes |
| Multi IP address | Yes |
| Users | 8 simultaneous users |
| OSD (On-Screen Display) | Text overlay for date, time, and camera name |
| Alarm event triggers | Image upload over FTP and E-mail by alarm / motion detection |
| Alarm event actions | Yes |
| CPU | Embedded SoC ARM11, 528MHz, 256MB DDR2, 256MB flash memory |
| Firmware | Firmware update via HTTP ; Firmware available at web site |
| Network Interface/Ethernet | 10Mbps / 100Mbps , RJ-45 |
| OS requirement | Windows 2000 , Windows XP , Windows Vista, Windows 7 |
| Web browser | Windows Internet Explorer 6.0 or above |
| CPU requirement | intel pentium 4 1.8GHz or above |
| RAM requirement | 1GB or above, Independent Display Card |
| Protocols | IP, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, Telnet, RTSP, RTCP, ONVIF, ICMP, IGMP |
| Mobile phone | iPhone, iPad, and Android support |
| Video Management | ONVIF & LILIN HTTPAPI ; CMX 3.6 / Navigator 3.8 support |
| Video Display | LILIN Universal ActiveX & LILIN Java Applet |
| OS | Embedded Linux 2.6.32 |
| Audio | Two-way Audio, G.711 / PCM |
| SD Card (recording) | Support Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| Alarm Input / output | 6 Input (TTL 5Vdc) , 2 Output (0.5A 120Vac,1A 24Vac) |
| IP Rating | IP66 |
| Operating temperature | -10°C − + 50°C ( 14°F − 122°F )／PoE+ ; -40°C − + 50°C ( 40°F − 122°F )／AC |
| Operating humidity | 0% − 90% |
| Blower control/Fan activation | On: 35°C, Off: 25°C |
| Heater control/Heater activation | On: 15°C, Off: 25°C |
| Dimensions | 332 mm (H) x 210 mm (V) |
| Weight | 3200 g |
| Power Supply | AC100 − 240V。PoE+ |
| Power Consumption | 48W (with Heater) ; 14W (not Heater) |
Downloads
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue-IPS4184E IPS4188E | 2017-04-10 | 635KB | |
| Installation Guide | IPS4184E, IPS4188E, IPS4204E, IPS4208E, IPS4304EA, IPS4308EA, IPS6224E and IPS6228E Installation Guide | 2014-11-13 | 4,262KB | |
| Manual | 1080P HD IP PTZ Camera Instruction Manual | 2014-10-03 | 3,894KB | |
| Image | High-Resolution Image | 6,257KB |
