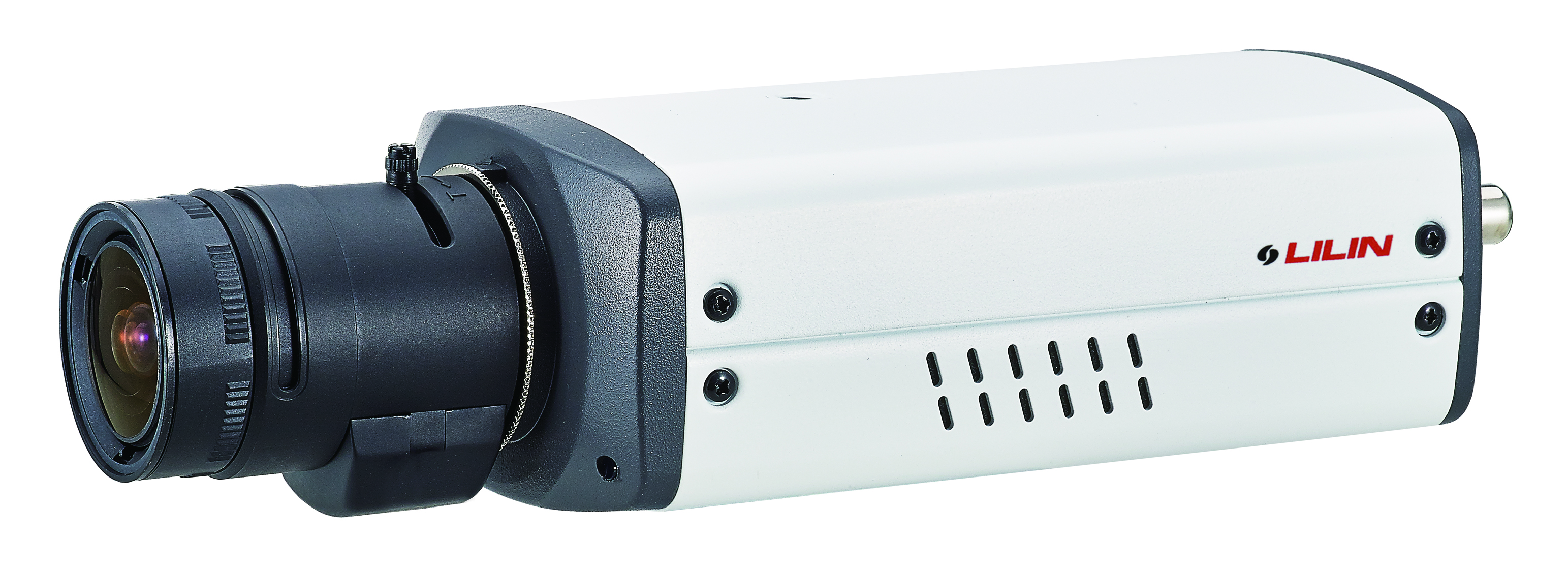

1080P Day & Night IP Box Camera
Model:SG1122E
EOL
H.264 Only
Features
- Infrared-cut filter for day/night operations
- 60 frames per second – ultra fast frame rate
- Micro SD/SDHC/SDXC card recording supported
- Intelligent Video Surveillance analytics built-in
- 1080p resolution
Alternative models
- H.265 Series / CV Series or Others
Description
Viewing Objects to Ensure Pictures are Kept Sharp
LILIN S Series camera – SG1122 is best-in-class IP camera, designed for a variety of applications. From LILIN’s powerful latest technology, the S Series cameras have an ultra fast frame rate of 60 frames per second at Full HD 1080P resolution, this results in crystal clear images. SG1122 camera is built-in with IR-cut filter able to capture fast moving objects during daytime and nighttime.
Specifications
Model | SG1122E |
Pick Up Element | 1/2.86-inch MOS |
Effective pixels | 1952 (H) × 1266 (V) = 2,471,232 (pixels) |
Video Compression | H.264 (main & high profile); M-JPEG |
Resolution | 1080P(1920×1080) , 720p(1280 x 720) , D1(720 x 480) , CIF(352 x 240) |
Maximum Frame Rate | Dual-stream mode, H.264 : up to 60 FPS @ 1920 x 1080, Motion JPEG : up to 30 FPS @ 720 x 480 / HDR mode, H.264 : up to 30 FPS @ 1920 x 1080 , Motion JPEG : up to 30 FPS @ 720 x 480 |
Video streaming | RTP / HTTP, RTP / TCP, RTP / UPP, Multicast Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth |
Video bitrate | 128Kbps to 12Mbps Frame rate and bitrate controllable on-the-fly VBR / CBR / GOP supported |
Scanning System | Progressive Scan |
Infrared Cut Filter | Colour (Day), Monochrome (Night), Auto, Schedule, External control |
Min. illumination/Low Light Mode (Colour) | 0.04 Lux at F1.2 (Color); 0.01 Lux at F1.2 (B/W) |
White Balance | Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2 |
Back Light Compensation (BLC) | On / Off |
Electrical Shutter | 1/30(1/25)s to 1/30000s |
Sense Up | Off / 1 frame / 2 frames |
Sense Up+ | Yes |
Auto Gain Control | 54 dB variable gain |
3D Noise Reduction | Off / 1 to 32 selectable |
2D WDR | Off / Auto / x2 / x3/ x4 (by normal mode) |
High Dynamic Range(HDR) | Up to 120 dB by HDR mode, 2 shutter line interleave |
Privacy Masking | Four independent areas |
Other functions | Sharpness, Image flip, Image mirror, Defog, Hue |
Live Video Output | CVBS 1.0Vp-p, 75 ohm, RCA connector |
Audio Input / Output | Mono, 1.4 Vp-p , 50 KΩ , 3.5mm phone jack |
Encryption | Base64 HTTP encryption |
Access | Multiple user access levels with password protection |
IP address filter | Yes |
Multi IP address | Yes |
User accounts | 8 simultaneous users |
ePTZ & Digital Zoom | Yes, ROI (Region of Interest) is supported |
OSD (On-Screen Display) | Text overlay for date, time and camera name |
IVS (Intelligent Video Surveillance) | Motion detection, Tamper detection, Zone Entering, Direction detection, Zone crossing |
Alarm event triggers | Tampering / audio / motion /alarm detection triggering recording into SD card Image upload over FTP and E-mail by tampering / audio / motion detection |
Alarm event actions | Yes |
CPU | Embedded SoC, 1.2GHz Dual ARM Cortex-A9 & 600MHz ARM11, 1GB DDR3,256MB flash memory |
Firmware | Firmware upgrade via HTTP |
Network Interface/Ethernet | 10/100/1000 Mbps Base-T (Tx), RJ-45 |
Control interface | RS-485 , Half-Duplex , support MLP2 , Pelco D/P protocols |
OS requirement | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8 |
Web browser | Microsoft® Internet Explorer® 6.0 and later |
CPU requirement | Intel Core 2 Duo E6400 2.13GHz or above |
RAM requirement | 2GB or above, Independent Display Card |
Protocols | IPv4, IPv6, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SNMP, SIP, Bonjour |
Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
Video Management | ONVIF Profile S ; LILIN NAV 5.0 ; Third party VMS through LILIN HTTP API |
Video Display | LILIN Universal ActiveX & LILIN Java Applet |
OS | Embedded Linux 3.8.0 |
Audio | Two-way Audio, G.711 u-law / PCM / AAC, Built-in Microphone |
SD Card (recording) | Support Micro SD/SDHC/SDXC card for circular recording (card is not included) |
Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact – N.O. , Load max. 40VDC/300mA) |
CE | Yes, EMI CLASS A |
FCC | Yes, EMI CLASS A |
Operating temperature | -25℃ to 50℃ (-13℉ to 122℉) |
Dimensions | 70mm(W) × 50mm(H) × 135mm(D) |
Weight | 420g approx. |
Power Supply | DC12V±10%。Power over Ethernet (IEEE 802.3af compliant) |
PoE | PoE |
Power Consumption | DC12V, 7.2W / PoE, 8W |
Downloads
Classification | Description | Date | File Size | Downloads |
Catalogue | Catalogue SG1122 | 2023-09-06 | 1,753KB | |
Image | High-Resolution Image | 2023-05-30 | 2,616KB | |
Firmware | Firmware Version : 2.7.92.8848 , For Model: SG1122E, SR7424EX3.6/SR7428EX3.6, SR7022E4/SR7022E6, SR8222E4, SR2922EX3, SR6422EX3, SD2222E2/SD2222E4, ZSR8122EX2, ZSR8122EX3 | 2023-05-30 | 36,138KB | |
Installation Guide | Installation Guide SG1122E | 2020-06-29 | 7,647KB | |
Manual | Ultra, ZH, S and ZS Series User Manual | 2020-05-05 | 3,387KB | |
Manual | Ultra, S and ZS series IVS Camera User Manual | 2019-02-11 | 2,442KB | |
A&E | A&E SG1122E | 2018-08-24 | 521KB | |
Manual | LILIN IP Camera Start Guide | 2017-03-13 | 1,503KB |
