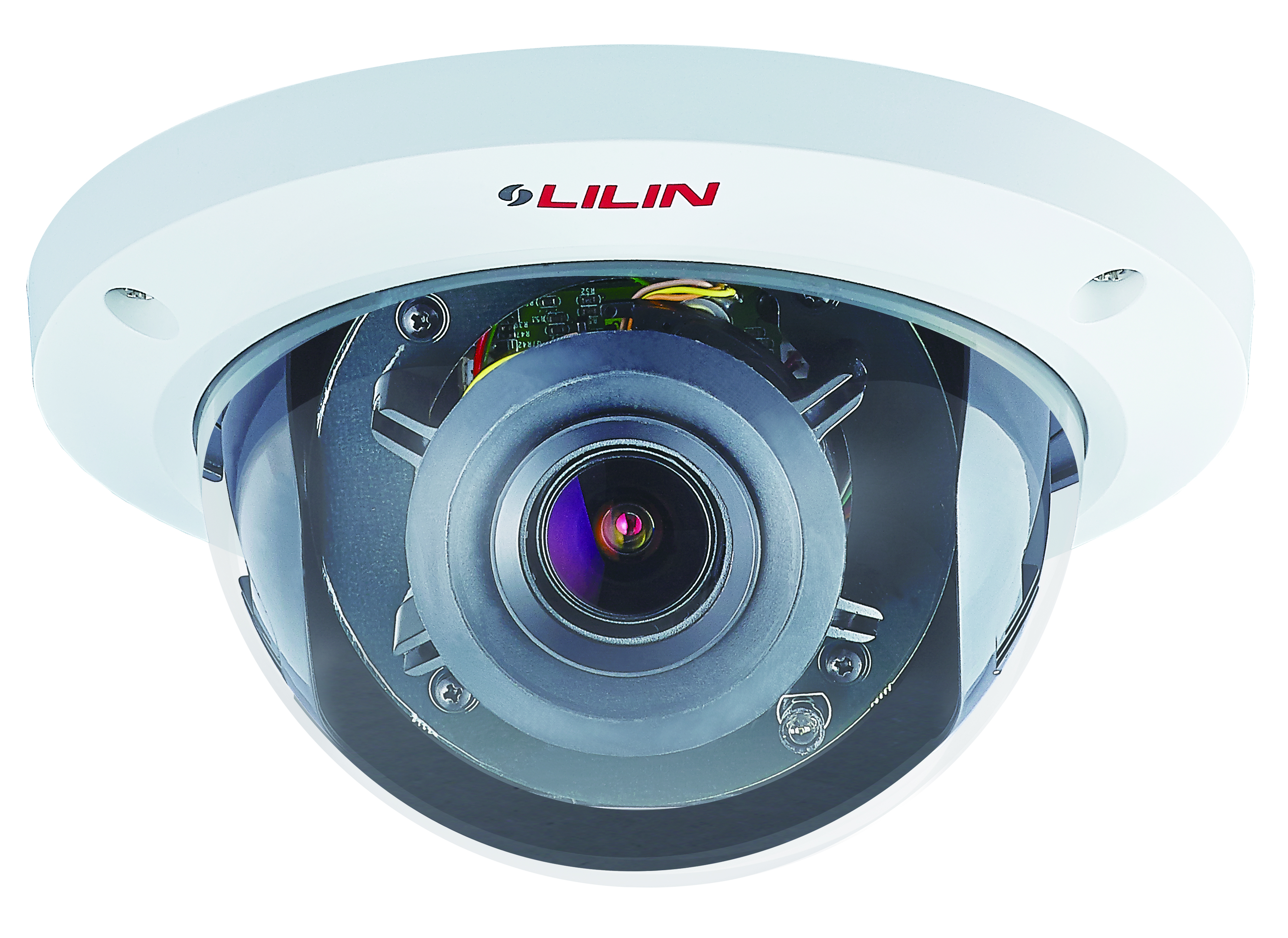

Day & Night 1080P HD Auto Focus Dome IP Camera
Model：ZD2322EX3(EOL)
Features
- Full HD 2 megapixel CMOS image sensor
- True H.264 AVC/MPEG-4 part 10 real-time video compression
- H.264 and Motion JPEG multi-profile video streaming
- Auto focus with zoom / focus motorized lens
- 3D noise reduction (MCTF)
- 2D WDR function
- Digital PTZ supported
- Face / Tampering / Audio / Motion detection alarm function
- Ceiling mount and Embedded mount installation
- Day & Night (IR cut removable)
- 2-way audio supported
- Digital I/O : 1 in, 1 out
- ONVIF supported
Description
ZD2322X is 1080P 2-megapixel CMOS image sensor, easy-to-install Auto Focus fixed dome, featuring embedded mount as well as ceiling mount installation in response to diverse array of environments for total situational awareness. Also, ZD2322X is featuring Full HD resolution with superb image quality up to 30FPS, are equipped with a removable IR-cut filter, built-in Intelligent Video Surveillance features such as face, tampering, audio, motion detection alarm function, WDR enhancement for un-paralleled visibility in high contrast environments, Automatic Gain Control (AGC) form of amplification to produce usable images, and securing high video quality in providing accurate identification around the clock.
With the built-in IEEE 802.3af compliant PoE for quick installation, IR illuminator technology helps avoiding overexposure under low light condition, and only ~150mm diameter in size, LILIN ZD2322X Auto Focus network camera is designed in a mini glassy dome form factor and offering flexible Auto Focus installation features.
Specifications
| Model | ZD2322EX3(EOL) |
| Image Sensor/Sensor type | 1/2.8" CMOS image sensor |
| Effective pixels | 1984 (H) x 1105 (V) = 2,192,320 pixels |
| Video Compression | H.264 , Motion JPEG |
| Resolution | 1080P(1920 × 1080), 720P(1280 × 720), D1(720 × 480), CIF(352 × 240) |
| Frame Rates | H.264 : up to 30 FPS @ 1920 x 1080, MJPEG : up to 30 FPS @ 720 x 480 / H.264 : up to 30 FPS @ 1280 x 720, MJPEG : up to 30 FPS @ 352 x 240 / H.264 : up to 30 FPS @ 1920 x 1080, MJPEG : up to 30 FPS @ 1280 x 720 / H.264 : up to 30 FPS @ 720 x 480, MJPEG : up to 15 FPS @ 1920 x 1080 |
| Lens | 2.8〜12 mm (zoom / focus motorized) |
| Iris | F1.4 |
| Angle of View | 91.2° – 25.5°(H), 68.4° – 19.1°(V), 114° – 31.9°(D) |
| Auto Focus | One push |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth |
| Video bitrate | 128Kbps to 8Mbps ; Frame rate and bitrate controllable on-the-fly ; VBR / CBR / GOP supported |
| Scanning System | Progressive scan |
| IR cut filter | Colour (Day), Monochrome (Night), Auto, Schedule |
| Min. illumination/Low Light Mode (Colour) | 0.02 lux at F1.4 Low Light Mode (Colour) |
| White Balance | Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2 |
| Back Light Compensation (BLC) | On / Off |
| Shutter Time | 1/30(1/25)s to 1/8000s |
| Sense Up | Off / 1 frame / 2 frames / 3 frames / 7 frames |
| Sense Up+ | Yes |
| Auto Gain Control | 36 dB variable gain |
| 3D Noise Reduction | Off / 1 to 32 selectable |
| 2D WDR | Off / Auto / x2 / x3/ x4 (by normal mode) |
| Privacy Masking | Four independent areas |
| Other functions | Sharpness, Image flip, Image mirror, Defog, Hue |
| Live video | CVBS 1.0Vp-p, 75 ohm, RCA connector |
| Audio Input / Output | Mono, 1.4 Vp-p , 50 KΩ , 3.5mm phone jack |
| Encryption | Base64 HTTP encryption |
| Access | Multiple user access levels with password protection |
| User accounts | 10 users accounts available |
| IP address filter | Yes |
| Multi IP address | Yes |
| Users | 8 simultaneous users |
| ePTZ & Digital Zoom | Yes, ROI (Region of Interest) is supported |
| OSD (On-Screen Display) | Text overlay for date, time and camera name |
| Alarm event triggers | Face / tampering / audio / motion / alarm detection |
| Alarm event actions | Yes |
| CPU | Embedded SoC ARM11, 528MHz, 256MB DDR2, 256MB flash memory |
| Firmware | Firmware upgrade via HTTP |
| Network Interface/Ethernet | 10Mbps / 100Mbps Base-T, RJ-45 |
| CE | EN 55022: 2010 Class A / IEC 61000-3-2: 2005+A1: 2008+A2: 2009 / IEC 61000-3-3: 2008 |
| FCC | FCC Part 15: Subpart B (10-1-10 Edition) Class A / CISPR 22: 2008 Class A |
| OS requirement | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8 |
| Web browser | Microsoft® Internet Explorer® 6.0 and later |
| CPU requirement | Intel Pentium 4 1.8GHz or above |
| RAM requirement | 1GB or above, Independent Display Card |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SNMP, SIP, Bonjour |
| Mobile phone | Integrated to LILIN mobile app (LILINViewer) ; iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / LILIN NAV 1.0 / Third party VMS through LILIN HTTP API |
| Video Display | LILIN Universal ActiveX & LILIN Java Applet |
| OS | Embedded Linux 2.6.32 |
| Audio | 2-way audio , G.711 / PCM |
| SD Card (recording) | Support Micro SD/SDHC card for circular recording (card is not included) |
| Alarm Input / output | Digital 1 input (TTL, +3 〜 5VDC) / 1 Output (MOS Relay contact N.O., Load max. 40VDC/300mA) |
| Operating temperature | -25°C to +50°C (-13°F to 122°F) |
| Dimensions | Ø 150 x 134mm |
| Weight | 600g approx. |
| Power Supply | DC12V ±10% 。Power over Ethernet (IEEE 802.3af compliant) |
| PoE | PoE |
| Power Consumption | DC12V, 8W / PoE, 9.5W |
Downloads
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue-ZD2322X | 2017-11-10 | 1,119KB | |
| Firmware | Firmware 1.4.94 , ZD2322, ZD6122, ZR2322, ZR6122, ZR7424/8 | 2017-02-15 | 21,420KB | |
| Manual | LILIN IP Camera Start Guide | 2015-05-18 | 1,503KB | |
| A&E | ZD2322X A&E | 2014-10-08 | 238KB | |
| Installation Guide | IPR2322ESX, IPD2322ESX, LR2322EX, LD2322EX, ZR2322EX and ZD2322EX Installation Guide | 2014-09-02 | 2,577KB | |
| Firmware | Firmware 1.0.60 , ZD2322, ZD6122, ZR2322, ZR6122, ZR7424/8 | 2014-02-27 | 19,273KB | |
| Image | High-Resolution Image | 6,168KB |
