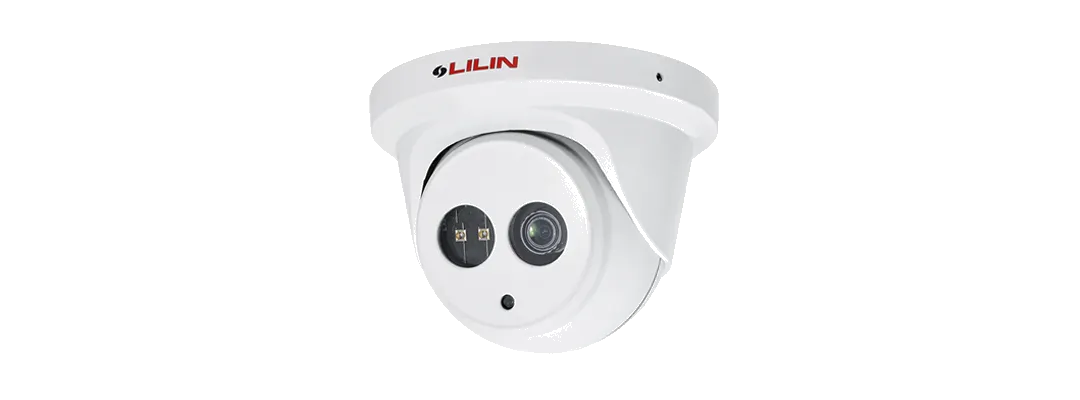

5MP Day & Night Auto Focus IR Vandal Resistant Dome Camera
Model：AHD655AX2.8
Launched
- 5 megapixel CMOS image sensor
- Video without compression, no delay with high quality and real-time monitoring.
- Auto focus with zoom / focus motorized lens
- 2D +3D noise reduction
- DWDR function
- High efficiency IR LED, radiant distance up to 20m
- Day & Night (IR cut removable)
- Long transmission distance–Coaxial cable
- Seamless compatibility with the standard Analog equipment
- UTC function (AHD-Coaxial protocol)
- IP66 rain and dust resistant Vandal resistant approve
- Video Output: AHD 5MP or CVBS 960H
The AHD655AX2.8 (discontinued) is a day and night auto focus IR vandal resistant dome AHD camera with a 1/2.8-inch CMOS sensor, recording 5MP at 20 fps. Its 2.8 to 8 mm lens covers 95 to 47.2 degrees horizontally at F1.6, with color sensitivity down to 0.025 lux and IR illumination reaching 20 meters. The Ø115 by 91 mm housing weighs 380 g, is rated IP66 and IK10, operates from -40°C to +50°C, and draws 5 W over DC12V.
