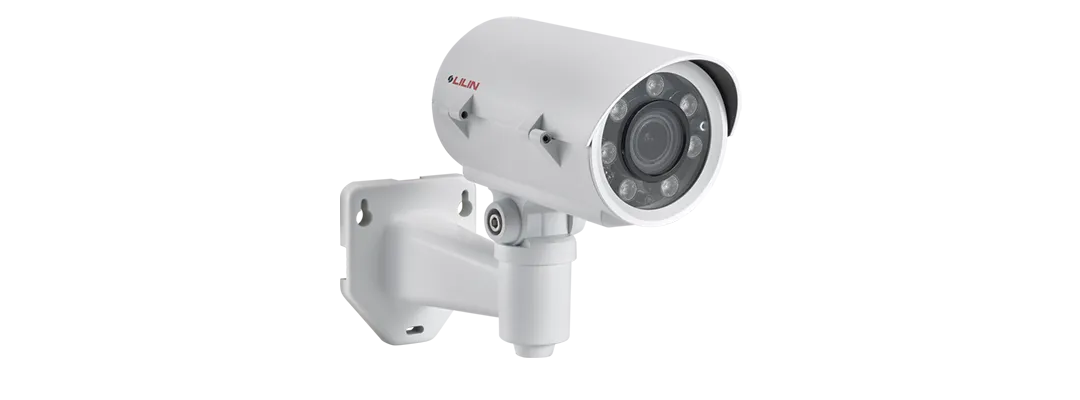

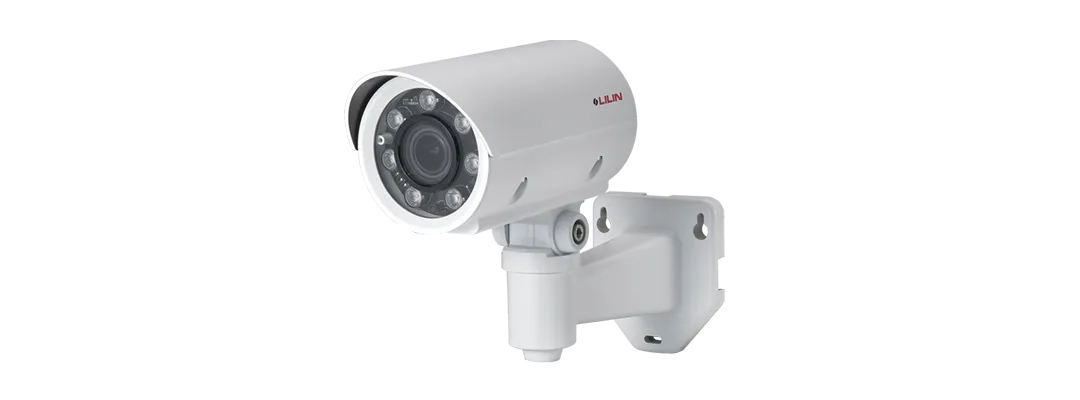

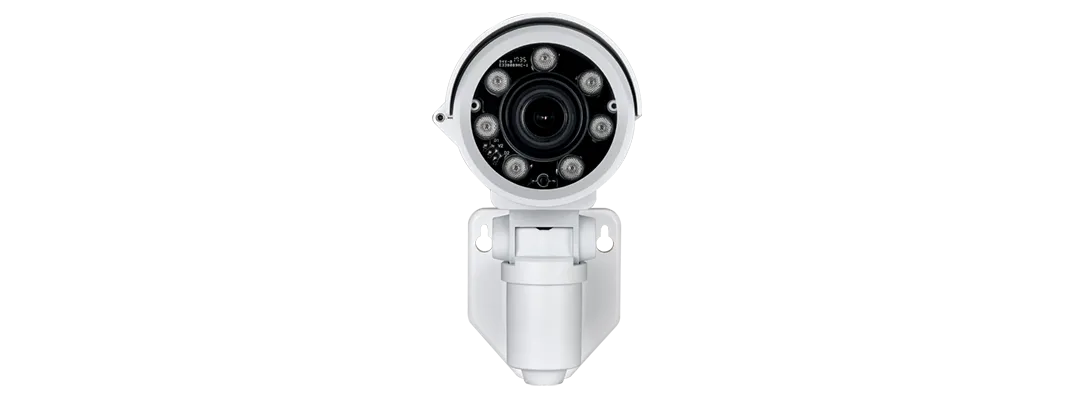

5MP Day & Night Vari-Focal IR Vandal Resistant Bullet Camera
Model：AHD775AX4.2
Launched
- 5 megapixel CMOS image sensor
- Video without compression, no delay with high quality and real-time monitoring.
- 2D noise reduction
- DWDR function
- High efficiency IR LED, radiant distance up to 50m
- Day & Night (IR cut removable)
- Long transmission distance–Coaxial cable
- Seamless compatibility with the standard Analog equipment
- UTC function (AHD-Coaxial protocol)
- Video Output: AHD 5MP or CVBS 960H
- IP66 rain and dust resistant
- Vandal resistant approve
The AHD775AX4.2 is a day and night vari-focal IR vandal resistant bullet AHD camera with a 1/2.5-inch CMOS sensor, recording 5MP at 20 fps. Its 2.8 to 12 mm lens covers 91 to 28 degrees horizontally at F1.4, with color sensitivity down to 0.08 lux and IR illumination reaching 50 meters, powered by 7 IR LEDs. The 98.5 by 90 by 195 mm housing weighs 1200 g, is rated IP66 and IK10, operates from -40°C to +50°C, and draws 11 W over DC12V.
