5MP Day & Night Auto Focus IR Bullet Camera
Model：AHD845AX2.8
Launched
- 5 megapixel CMOS image sensor
- Video without compression, no delay with high quality and real-time monitoring.
- Auto focus with zoom / focus motorized lens
- 2D +3D noise reduction
- DWDR function
- High efficiency IR LED, radiant distance up to 20m
- Day & Night (IR cut removable)
- Long transmission distance–Coaxial cable
- Seamless compatibility with the standard Analog equipment
- UTC function (AHD-Coaxial protocol)
- IP66 rain and dust resistant
- Video Output: AHD 5MP or CVBS 960H

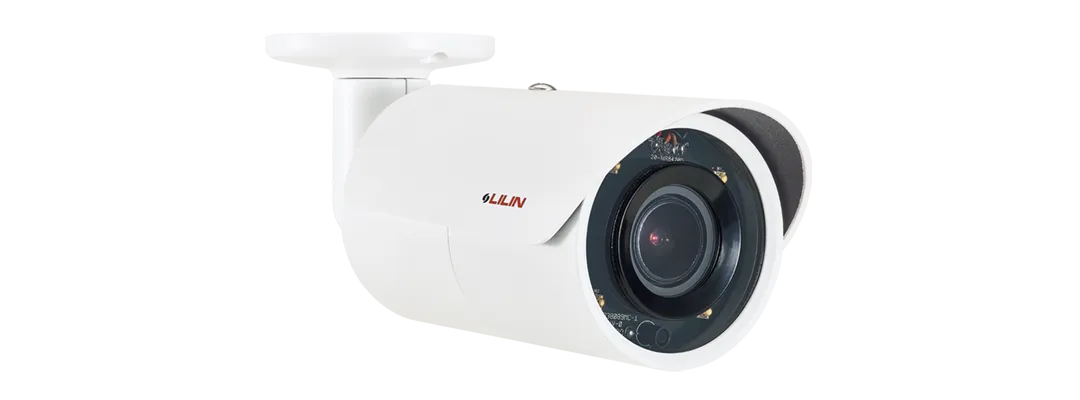

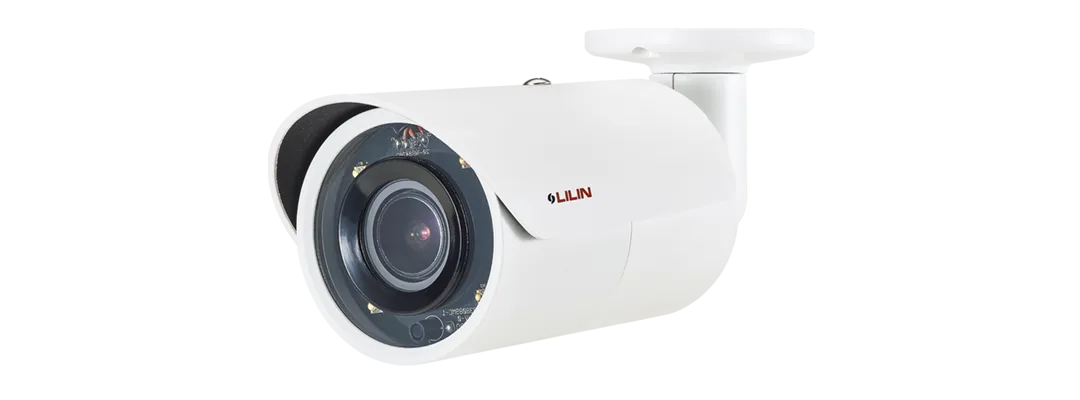

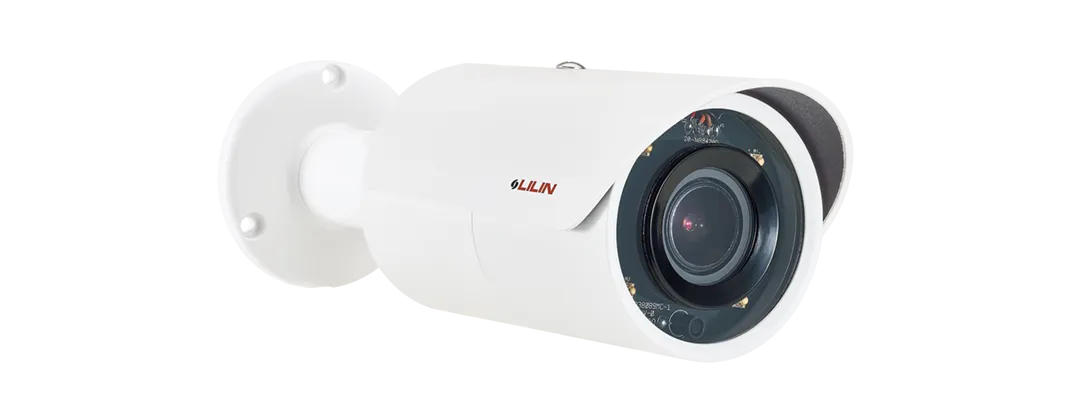

The AHD845AX2.8 (discontinued) is a day and night auto focus IR vandal resistant bullet AHD camera with a 1/2.8-inch CMOS sensor, recording 5MP at 20 fps. Its 2.8 to 12 mm lens covers 95 to 47.2 degrees horizontally at F1.6, with color sensitivity down to 0.025 lux and IR illumination reaching 20 meters, powered by 7 IR LEDs. The 68 by 69 by 214 mm housing weighs 470 g, is rated IP66, operates from -40°C to +50°C, and draws 8.9 W over DC12V.
