5MP Day & Night Fixed IR Vandal Resistant Bullet Camera
Model：AHD765A3.6
Launched
- 5 megapixel CMOS image sensor
- Video without compression, no delay with high quality and real-time monitoring.
- 2D noise reduction
- DWDR function
- High efficiency IR LED, radiant distance up to 20m
- Day & Night (IR cut removable)
- Long transmission distance–Coaxial cable
- Seamless compatibility with the standard Analog equipment
- UTC function (AHD-Coaxial protocol)
- Video Output: AHD 5MP or CVBS 960H
- IP68 rain and dust resistant
- Vandal resistant approve

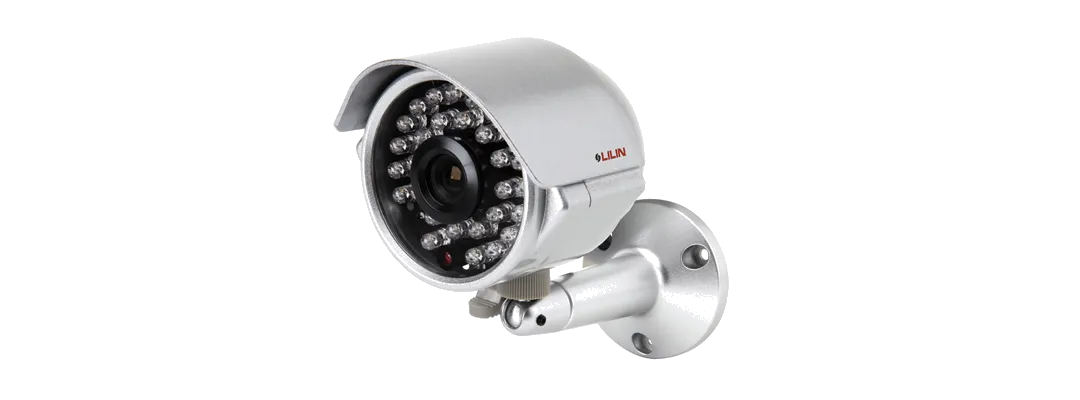

The AHD765A3.6 is a day and night fixed lens IR vandal resistant bullet AHD camera with a 1/2.5-inch CMOS sensor, recording 5MP at 20 fps. The 3.6 mm F2.0 lens covers 84.1 degrees horizontally, with color sensitivity down to 0.08 lux and IR illumination reaching 20 meters. The 78 by 66.5 by 88 mm housing weighs 325 g, more compact than the AHD705A3.6, is rated IP68 and IK10, operates from -40°C to +50°C, and draws 6.5 W over DC12V.
