4 Channel Hybrid DVR

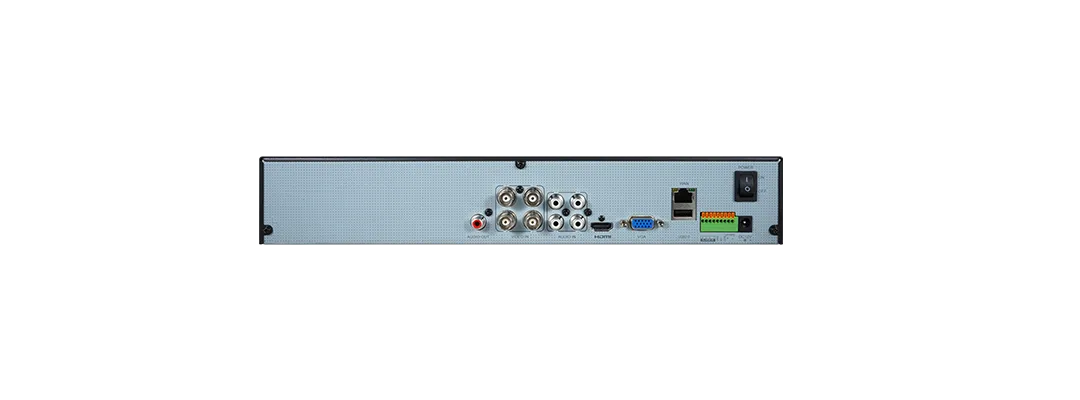

The DHD6104 is a 4 channel hybrid DVR supporting mixed AHD, TVI, CVI, analog and IP cameras. It records with H.264 and H.265 encoding at resolutions from CIF to 5MP, with each channel following a seven day, 24 hour time schedule. Screen display includes 1, 4 split and sequence modes, and playback search covers alarm, operation and system events with 2X to 64X fast forward and rewind plus 1/2 to 1/64 slow motion. The recorder holds one 3.5 inch hard drive up to 12TB, carries four alarm inputs and one output, and measures 360 by 316 by 60 mm at approximately 2.1 kg without the drive. Power is DC12V 3A 36W and the operating temperature range is 0°C to 45°C.
