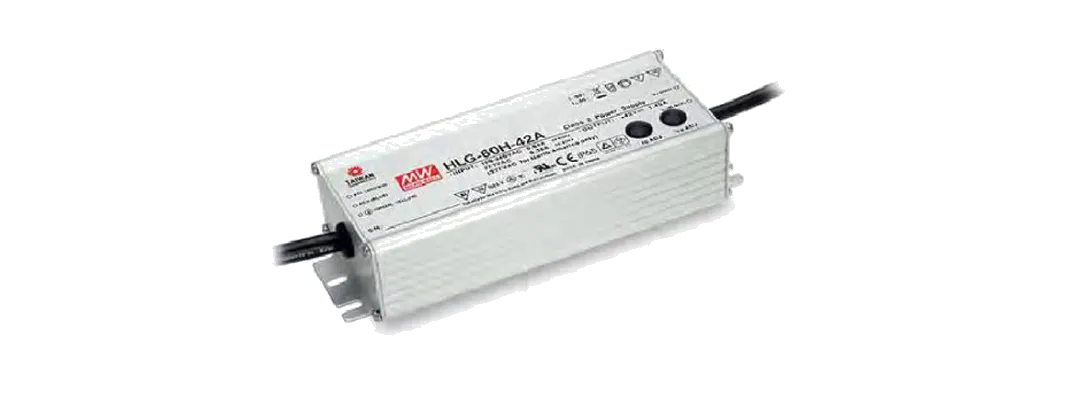

60W Single Output Switching Power Supply

Model：HLG-60H-15

Launched

Universal AC input / Full range(up to 305VAC)
Built-in active PFC function
Protections: Short circuit / over current / over voltage / over temp.
Cooling by free air convection
IP67/IP65 design for indoor or outdoor installations
Class 2 power unit

The HLG-60H-15 is a single output switching power supply delivering 15V at 4A, rated 60W. Input spans 90 to 305 VAC or 127 to 431 VDC at 47 to 63 Hz, with 87.5% efficiency, 0.98 power factor at 115VAC and ripple noise under 150 mVp-p, voltage tolerance ±2.0%. Overcurrent uses constant current limiting and short circuit uses hiccup mode, both recovering automatically once the fault clears, while over voltage and over temperature shut down the output until power is cycled. Operating temperature is -40°C to +70°C, output isolation withstands 3.75 kVAC with 16 ms hold-up time.

Specifications

DC voltage	15V
Rated current	4A
Rated power	60W
Voltage range	90〜305VAC or 127〜431VDC
Over current	95〜108%
Over current	Protection type : Constant current limiting, recovers automatically after fault condition is removed
Frequency range	47〜63Hz
Short circuit	Hiccup mode, recovers automatically after fault condition is removed
Over voltage	18〜24V。
Over voltage	Protection type : Shut down o/p voltage, re-power on to recover
EMC emission	Compliance to EN55015, EN61000-3-2 Class C (≧60% load) ; EN61000-3-3
EMC immunity	Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light industry level (surge 4KV), criteria A
Packing	0.73Kg; 20pcs/15.6Kg/0.8CUFT
MTBF (mean time between failure)	338Khrs min. MIL-HDBK-217F (25℃)
Constant current region	9〜15V
Ripple & noise (max.)	150mVp-p
Voltage ADJ. range	13.5〜17V
Current ADJ. range	2.4〜4A
Voltage tolerance	±2.0%
Line regulation	±0.5%
Load regulation	±1.5%
Setup, rise time	500ms, 80ms at full load 。230VAC / 115VAC
Hold up time	16ms/230VAC 。16ms/115VAC at full load
Power factor	PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load
Total harmonic distortion	THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input
Efficiency	87.5%
AC current	0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC
Inrush current	COLD START 55A(twidth=265 s measured at 50% Ipeak) at 230VAC
Max. No. of PSUs on 16A circuit breaker	9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
Leakage current	<0.75mA / 277VAC
Temp. coefficient	±0.03%/℃(0〜60℃)
Vibration	10〜500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
Over temperature	Shut down o/p voltage, re-power on to recover
Safety standards	UL8750(type”HL”), CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP65 or IP67, J61347-1, J61347-2-13 approved ; design refer to UL60950-1, TUV EN60950-1, EN60335-1
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Operating humidity	20〜95% RH non-condensing
Operating temperature	-40〜+70℃
Storage Humidity	10〜95% RH
Storage temperature	-40〜+85℃
Dimensions	17161.536.8mm (LWH)
