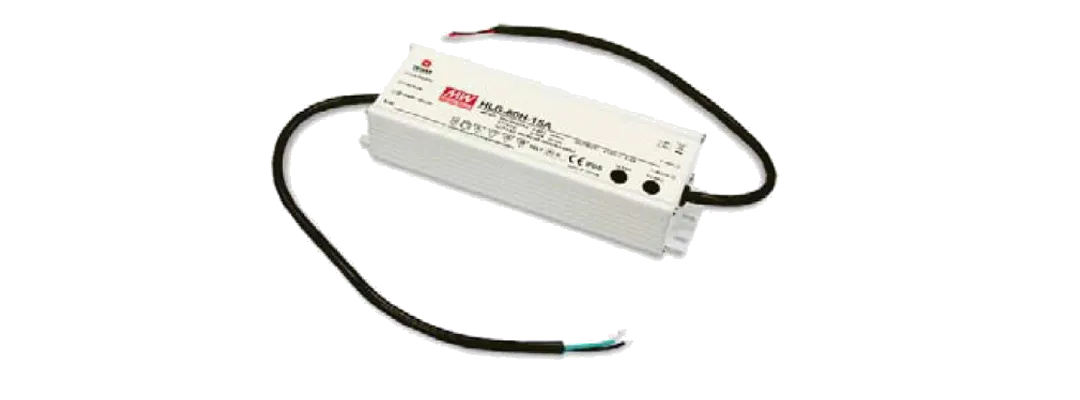

80W Single Output Switching Power Supply

Model：HLG-80H-24

Launched

Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
Cooling by free air convection
OCP point adjustable through output cable or internal potentiometer
IP67/IP65 design for indoor or outdoor installations
Suitable for dry / damp / wet locations

The HLG-80H-24 is a single output switching power supply delivering 24V at 3.4A, rated 81.6W and operating from -40°C to +70°C. Input covers 90 to 305 VAC or 127 to 431 VDC at 47 to 63 Hz, efficiency is 90.5%, power factor 0.96 at 115VAC. Ripple noise caps at 150 mVp-p, voltage tolerance ±1.0%, load regulation ±0.5%, overcurrent and hiccup mode short circuit protections recover automatically once the fault clears, while over voltage and over temperature shut down the output until power is cycled. Output isolation withstands 3.75 kVAC with 16 ms hold-up time.

Specifications

DC voltage	24V
Rated current	3.4A
Rated power	81.6W
Voltage range	90〜305VAC or 127〜431VDC
Over current	95〜108%
Over current	Protection type : Constant current limiting, recovers automatically after fault condition is removed
Frequency range	47〜63Hz
Short circuit	Hiccup mode, recovers automatically after fault condition is removed
Over voltage	54〜63V
Over voltage	Protection type : Shut down o/p voltage, re-power on to recover
EMC emission	Compliance to EN55015, EN61000-3-2 Class C (≧60% load) ; EN61000-3-3
EMC immunity	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria B
Packing	195.661.538.8mm (LWH)
MTBF (mean time between failure)	357.8Khrs min. MIL-HDBK-217F (25℃)
Constant current region	14.4〜24V
Ripple & noise (max.)	150mVp-p
Voltage ADJ. range	22〜27V
Current ADJ. range	Can be adjusted by internal potentiometer A type only。2.04〜3.4A
Voltage tolerance	±1.0%
Line regulation	±0.5%
Load regulation	±0.5%
Setup, rise time	1200ms,80ms/115VAC 500ms,80ms/230VAC at full load ; B type 1200ms,200ms/115VAC 500ms,200ms/230VAC at 95% load
Hold up time	16ms at full load 230VAC /115VAC
Power factor	PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load
Total harmonic distortion	THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input
Efficiency	90.5%
AC current	0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC
Inrush current	COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC
Max. No. of PSUs on 16A circuit breaker	3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
Leakage current	<0.75mA / 277VAC
Temp. coefficient	±0.03%/℃(0〜60℃)
Vibration	10〜500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
Over temperature	Shut down o/p voltage, re-power on to recover
Safety standards	UL8750(type”HL”), CSA C22.2 No. 250.0-08(except for HLG-80H-48/54V & HLG-80H-48/54BL), UL8750 listed for HLG-80H-BL EN61347-1, EN61347-2-13 independent, J61347-1, J61347-2-13, IP65 or IP67 approved ; Design refer to UL60950-1, TUV EN60950-1
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Operating humidity	20〜95% RH non-condensing
Operating temperature	-40〜+70℃
Storage Humidity	10〜95% RH
Storage temperature	-40〜+80℃
Dimensions	195.661.538.8mm (LWH)
