| Pick Up Element | 1/2.7" CMOS image sensor |
| Effective pixels | 1920 (H) x 1080 (V) = 2,073,600 (pixel) |
| Video Compression | H.264 , Motion JPEG |
| Resolution | 1080p(1920 × 1080), 720p(1280 × 720), D1(720 × 480), CIF(352 × 240) |
| Maximum Frame Rate | H.264 : up to 30 fps @ 1920 x 1080, MJPEG : up to 30 fps @ 720 x 480 / H.264 : up to 30 fps @ 1280 x 720, MJPEG : up to 30 fps @ 352 x 240 / H.264 : up to 30 fps @ 1920 x 1080, MJPEG : up to 30 fps @ 1280 x 720 / H.264 : up to 30 fps @ 720 x 480, MJPEG : up to 15 fps @ 1920 x 1080 |
| Focal Length | 3.7 mm (Pinhole) |
| Iris | F2.8 |
| Angle of View | 100°(H), 56°(V), 114°(D) |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast |
| Video bitrate | 128Kbps〜8Mbps ; Frame rate and bit rate controllable on-the-fly ; VBR / CBR / GOP supported |
| Scanning System | Progressive Scan |
| Min. illumination/Low Light Mode (Colour) | 1.5 Lux at F2.8 |
| White Balance | Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2 |
| Back Light Compensation (BLC) | Off / On |
| Electrical Shutter | 1/30(1/25)s〜1/8000s |
| Sense Up | Off / 1 frame / 2 frames / 3 frames / 7 frames |
| Sense Up+ | Yes |
| Auto Gain Control | 36 dB variable gain |
| 3D Noise Reduction | Off / 1〜32 selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| Privacy Masking | Off / On (4 zones) |
| Other functions | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip |
| Live Video Output | CVBS 1.0Vp-p, 75 ohm, RCA connector |
| Audio Input / Output | Mono, 1.4 Vp-p , 50 KΩ , 3.5mm phone jack |
| Image Sensor Module Input | RJ-12 , 6 Pins |
| Encryption | Base64 HTTP encryption |
| Access | Multiple user access levels with password protection |
| Max number of online users | 10 user accounts available |
| IP address filter | Yes |
| Multi IP address | Yes |
| User accounts | 8 simultaneous users |
| ePTZ & Digital Zoom | Yes, ROI is supported |
| OSD (On-Screen Display) | Text overly for date, time , and camera name |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network loss detection |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / SNMP Trap / Alarm Output / Push Service notification |
| CPU | Embedded SoC ARM11, 528MHz, 256MB DDR2, 256MB flash memory |
| Firmware | Firmware upgrade via HTTP / Firmware available to download at meritlilin.com |
| Network Interface/Ethernet | 10/100 Mbps Base-T (Tx), RJ-45 |
| Control interface | RS-485, Half-Duplex, support MLP2, Pelco D/P protocols |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| OS requirement | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8 |
| Web browser | Microsoft® Internet Explorer® 6.0 or later |
| CPU requirement | Intel Pentium 4 1.8GHz or above |
| RAM requirement | 1GB or above ,Independent Display Card |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SNMP, SIP, Bonjour |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S ; LILIN CMX3.6 NAV 1.0 ; Third party VMS through LILIN HTTP API |
| Video Display | LILIN Universal ActiveX & LILIN Java Applet |
| OS | Embedded Linux 2.6.32 |
| Audio | Two-way Audio, G.711 u-law / PCM, External Microphone Required |
| SD Card (recording) | Support Micro SD/SDHC card for circular recording (card is not included) |
| Alarm Input / output | Digital 2 input (TTL, +3 – 5VDC) / 1 Output (Relay dry contact N.O. / N.C., Load max. 24VDC/1A) |
| Operating temperature | -25°C – +50°C (-13°F – 122°F) |

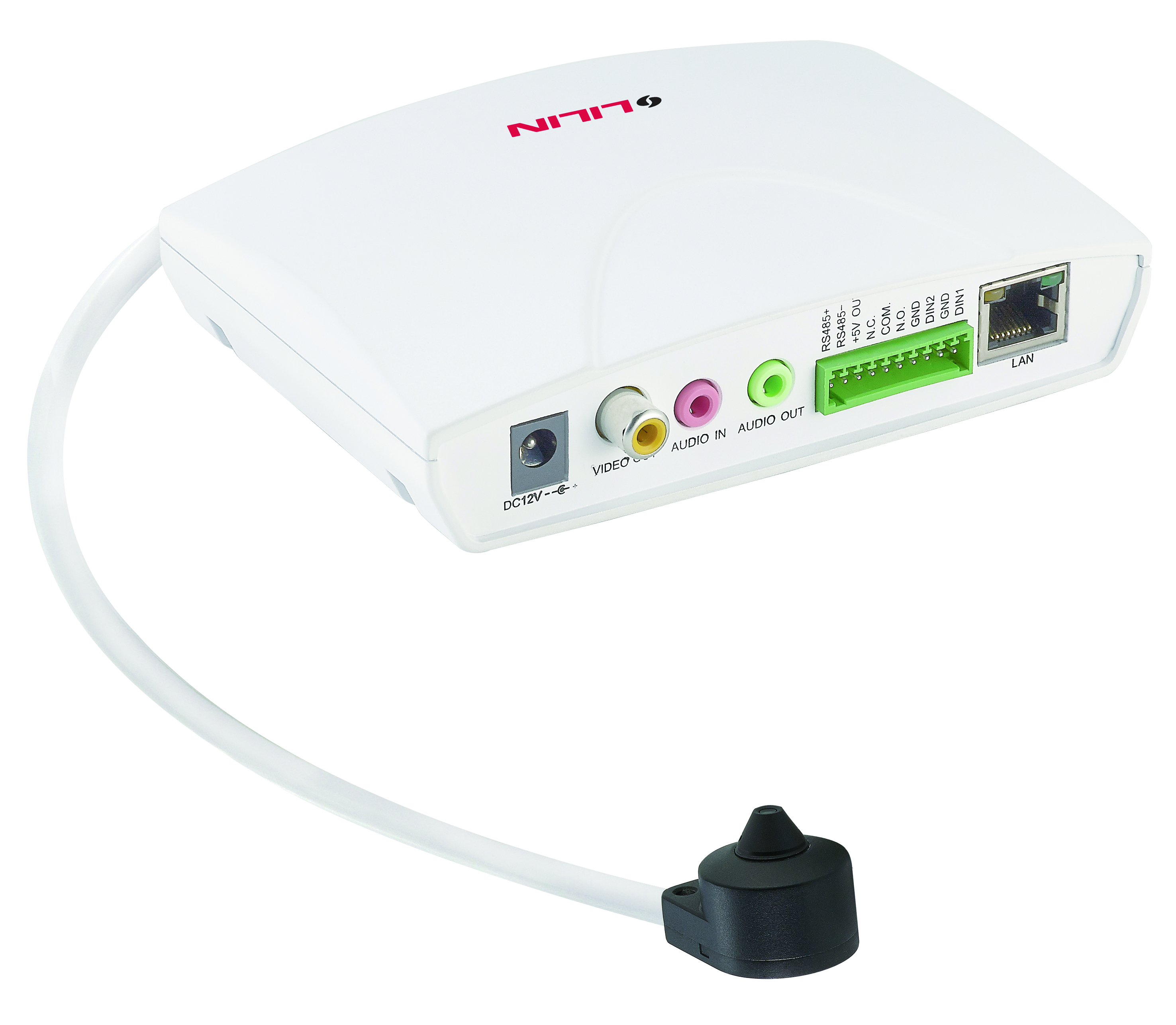

| Dimensions | Main module : 130mm(W) x 35mm(H) x 93mm(D) , Image sensor module : Ø25 x 32mm |
| Weight | Main module : 300g , Image sensor module : 180g |
| Power Supply | DC12V ±10%。PoE (IEEE 802.3af compliant) |
| PoE | PoE |
| Power Consumption | DC12V, 6W / PoE, 7.5W |
| Warranty | 3 Years |
