CONDENSER MICROPHONE
Model：MIC03
Launched
- 3.5mm connector for IP cameras with Line IN.
- Omnidirectional condenser microphone that covers a wide angle when recording.
- -60dB high sensitivity for clear sound.
- 5m shielded cable that reduces signal interference.

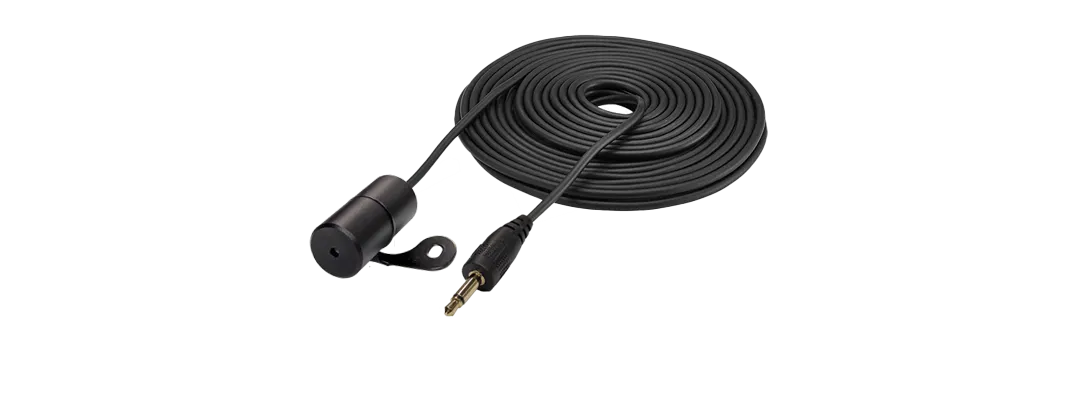

The MIC03 is an omnidirectional electret condenser microphone with a larger body measuring 18.5 by 40 mm, a 5 meter cable and a weight of 121 g. Compared with the smaller MIC02, it achieves a higher signal-to-noise ratio of 60 dB or better. Frequency response spans 100 Hz to 10 kHz with sensitivity of -40±4 dB at a low impedance of 2.2 KΩ. Operating at a standard 2.0V and a maximum of 5V with 0.5 mA consumption, it works from -25°C to 70°C and stores from -40°C to 80°C.
