| Network video support | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capture |

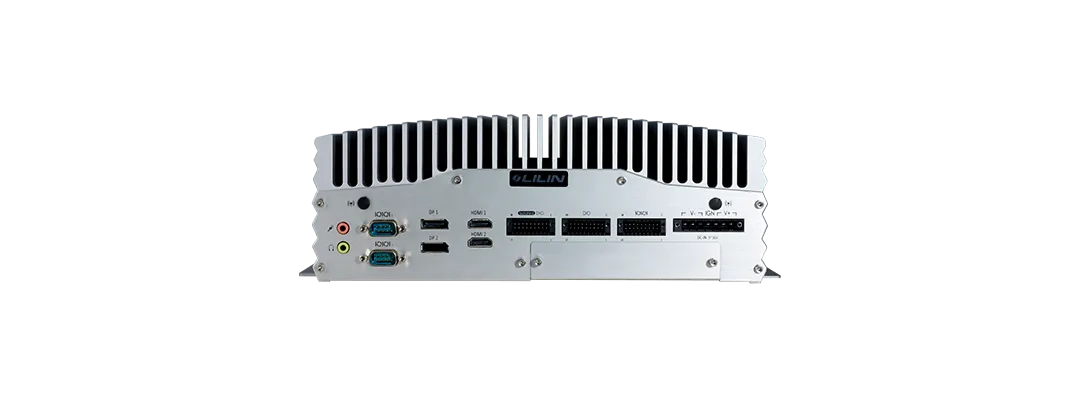

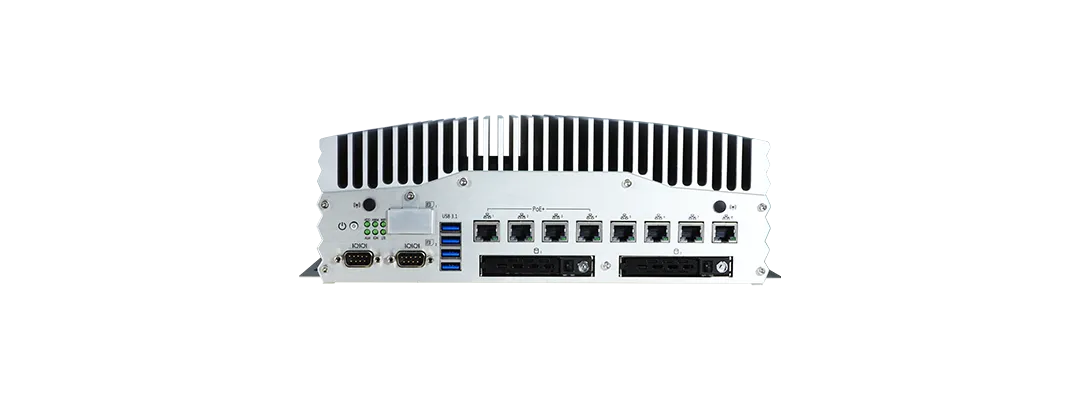

| Chassis | Fanless Industrial PC |
| IP Video Input | Up to 6 channels 1080p |
| Network video Format | H.264 / H.265 / MJPEG |
| Maximum Network Throughput | Upload: up to 500Mbps, Download: up to 500Mbps |
| Internal HDD / Swap Drive Bay | built-in 1 × 500GB M.2 SSD (OS)
built-in 2 × SATA 1TB 2.5" HDD (recording) |
| Video input (Support quantity) | Max. 6 channels |
| Camera name | 20 characters |
| Channel editing | Mouse drag-n-drop |
| Fisheye Dewarp Mode | Ceiling and ground mounted, 1 R One Region, 3 R1O Three Regions One Fisheye, 4 R Four Regions, 2 R1P Two Regions One Panoramic 360, 2 P Two Panoramics 180, 8 R1O Eight Regions One Fisheye, Wall mounted, 1 R One Region, 3 R1O Three Regions One Fisheye, 4 R Four Regions, 2 R1P Two Regions One Panoramic 180, 1 WP One Wall Panoramic 180, 8 R1O Eight Regions One Fisheye |
| Digital zoom | Yes, ePTZ supported |
| Privacy Masking | Supported |
| Remote monitoring (Video input) | Yes, web and NAV Client |
| HDMI output | 2 × HDMI Port 2.0b, (4096 × 2160@24Hz) |
| DVI / VGA output | No support |
| DisplayPort output | 2 × DisplayPort 1.4, (4096 × 2160@60Hz) |
| Split Screen | 4, 9 |
| Dual stream technology (Video output) | Multi-channel displays D1 and full screen displays 1080p |
| Multi-screen (Video output) | Single screen, up to 6 channels in total (480P 15 fps) |
| Application/ Recording Mode | Alarm, motion, schedule, and manual |
| Recording schedule | 7 days × 24 hrs time table, recording mode configurable |
| Recording resolution & framerate | Max 1080p@60 fps, and ROI recording supported |
| Motion recording | 4 channels |
| Alarm recording | Remote digital input, remote IVS detection, remote face detection, remote tamper detection, remote audio detection, external IO, motion detection, NAV CGI Triggering, video loss detection, speed measurement detection, ANPR detection, facial recognition, remote LPR detection, QR code detection, aida behavior detection |
| Audio Recording | Yes |
| Circular recording | Yes / size customizable |
| Limited recording | Yes / days customizable |
| Failover | No Supported |
| Video Archiving | Yes |
| Low bitrate recording | Yes |
| Remote network NAS | Support NAS (SMB/CIFS), iSCSI |
| Playback Search | Date, time, Smart search, Alarm search, POS, ANPR search, Face search, Face trace search (in FR server only), Tagging search |
| Playback resolution and framerate | Max 1080p@60 fps |
| Playback Speed | Fast Rewind: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X
Fast Forward: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X |
| Backup / Video input | Max. 6 channels, AVI & MP4 file format supported |
| Remote video (Playback) | NAV Server / Navigator Client / DVR / NVR / IP camera SD card supported, max. 6 channels simultaneous playback and backup |
| Alarm Management | Play audio file, send email notification, PTZ preset, digital output triggering, full screen, post alarm record, pre-alarm record, advanced alarm digital output, send customizable HTTP POST CGI URL to third party device, alarm ACK, alarm snapshot, text overlay, App cloud push notification, NCC TV wall ACK, NCC eMap Center Alarm, NCC play sound, NCC global alarm setting, all these action can be automatic or scheduled |
| Alarm recording(Alarm / event) | Pre-alarm:1 ~ 10 seconds and post-alarm: 1 sec ~ 59 minutes |
| Alarm scheduling | Up to four alarm tables with AND logic |
| Alarm event actions | Various alarm events, video/network loss, schedule recording, schedule stop recording, login/logout, operation event log |
| Digital Output | Controllable via IP cameras |
| Video archiving & sync. | Individual camera configurable, scheduling and instant archiving |
| Keyboard Keypad | PIH-931D keyboard controllable via rs-485 to usb converter for PTZ, ePTZ, and ROI features |
| Audio | PCM/G.711/AAC, two-way audio, audio recording |
| POS / barcode scanner | Third-party TCP / IP, RS-232, Bluetooth, HID USB barcode scanner |
| Protocols | ARP / TCP/IP / RTSP / ONVIF / HTTP / HTTPS / SMTP / DNS / PPPoE / SDDP |
| Mobile Application | LILIN Pro&Home, iPhone and Android |
| IP Scan | Supported, easy-to-setup for IP address |
| VMS support | Support NAV Client software |
| eMap | Supported |
| CPU | Intel® Core™ i7-9750H |
| RAM | 16GB (2 × DDR4 8GB) |
| Chipset | Intel® CM246 |
| Display card | 1 x MXM NVIDIA GTX 1060 |
| Network ports | 1 x Intel® I219-LM with 1GbE
7 x Intel® I210 with 1GbE |
| Audio (Hardware) | 2 × Audio jack(s) |
| Rear panel USB port | 4x USB3.1 Gen1 Type-A |
| Playback Resolution | Max 1080p@120 fps |
| Digital watermark (Video tamper resistance) | support digital watermark feature to ensure the backup footage is not got forged and modified |
| eMap live monitoring | Each map can see 64 live video at the same time |
| Auto Switch to the Map of Alarm Event | Supported |
| Snapshot | Motion detection / external alarm / audio detection alarm / face detection |
| Alarm Event Actions (Accessories) | Digital output controllable, snapshots, and alarm popup |
| (eMap)Central management | Centralized monitoring channels from multiple server |
| (eMap)Online Maps | Google map and Baidu map up to 128 eMap, GPS devices supported |
| Number of Mark for Online Map | Each online map can support 5000 camera mark |
| Number of Mark for Offline Map | Each offline map can support 500 camera mark |
| SSD HDD | built-in 1 × 500GB M2 SSD (OS)
built-in 2 × SATA 1TB 2.5" HDD (recording) |
| Languages | English, Traditional Chinese, Spanish, German, French, Russian, Japanese, Portuguese, Italian, Simplified Chinese, Slovenian, Czech, Hungarian, Turkish, Arabic, Persian, Bengali, Vietnamese |
| OS | Windows 10 embedded SAC 21H2 |
| Time sync | Daylight saving time by Windows OS |
| Authentication | CE, FCC |
| Power Consumption | 230W |
| Power Supply | DC input 9V~36V |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ 185°F) |
| Relative Humidity | 5% ~ 95% (non-condensing) |
| Dimensions | 110.47(H) x 292.8(W) x 265(D) mm |
| Color | Silver |
| Weight | 19.84 lbs (9.2kg) - Net |
| Navigator Corporate Channel number | 6 channels |
| Number of AIDA recognition channel supported | 6 channels |
| Number of AI engines allowed | 3 engines |
| AIDA computing power capacity | 12 AIDA power per server |
