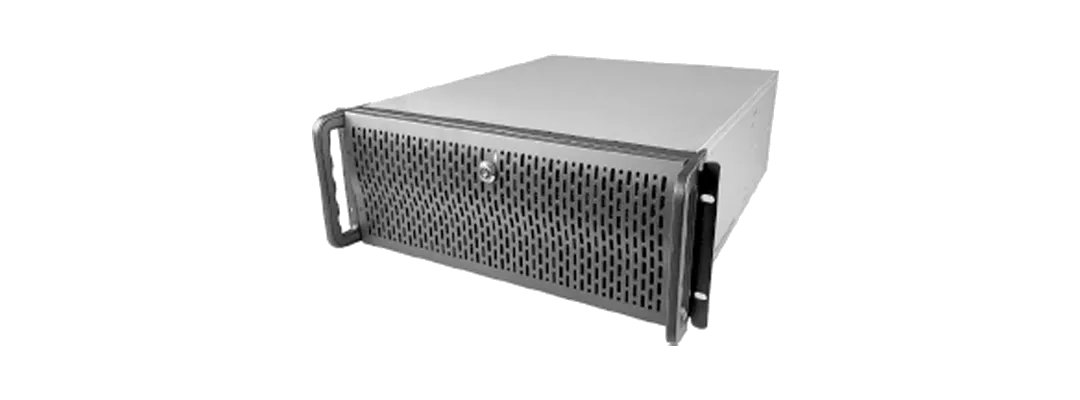

96CH Decoder
Model：NTS1004E
- built-in 1 × 500GB 2.5 Inch SATA SSD (OS)
- Support up to 3 x 3.5 Inch SATA HDD
- Dual streaming decoding mode supported
- 4 monitors support up to 96 channels in total (480P 15 fps)
-
Built-in dual port Gigabit Ethernet, RJ-45 × 2
- Built-in 700W Power Supply
- 4U dimension for standard cabinet
The NTS1004E is a 96-channel video wall controller with Intel Core i7-12700E, 64GB DDR4, 500GB SSD and up to 3 × 3.5-inch SATA hard drives, RTX3050 display card and 700W supply. Dual outputs of 2 × HDMI 2.0b and 2 × DisplayPort 1.4 each reach 4K 60Hz, driving 4 monitors with 96-channel mosaic display at 480P 15 fps. Windows 11 IoT Enterprise runs on the system with 2 × 120mm and 2 × 80mm exhaust fans. LILIN and ONVIF cameras, DVR/NVR and third-party VMS are supported, with remote viewing over web and NAV client. The 177 (H) by 482 (W) by 650 (D) mm chassis weighs 16.2 kg and operates from 0°C to 50°C.
Simple & Powerful TV Wall
You don't need fancy gear — just one workstation to handle it all.
Simplify on-site image output with an intuitive management framework.
The Art of Simplifying Complexity
Using a straightforward framework to simplify the maintenance and operation of on-site image output.
Numerous Channels
A single host supports simultaneous decoding of up to 144 video channels for large-scale surveillance.
Dual Streaming
Dual streaming decoding captures both main and sub-streams simultaneously.
Multi-Display
Supports up to six simultaneous screen outputs with fully flexible layout control.
Browse All Sources at Once
Use the LILIN NTS host to integrate all streams and arrange them across screens.
Application Scenarios
Explore the diverse screen combinations possible with a LILIN TV Wall.
Mobile GPS NVR on Map
Combine screens into a large frame to simultaneously display maps and live surveillance footage.
Explore
Mosaic TV Wall
Use a single screen to display single or multiple channels — or multiple screens for one feed.
Explore
Combination of Workstations
Interconnect multiple NTS servers to support virtually limitless channels and screen quantities.
ExploreFlexible Deployment
Select or combine hosts based on output channel count and screen count.
96ch TV Wall Workstation
Outputs up to 96 channels simultaneously, connecting up to 4 screens at once.
144ch TV Wall Workstation
Outputs up to 144 channels simultaneously, connecting up to 6 screens at once.
Video Management System
AI-powered control center for video analysis and event management, with smart footage retrieval.
