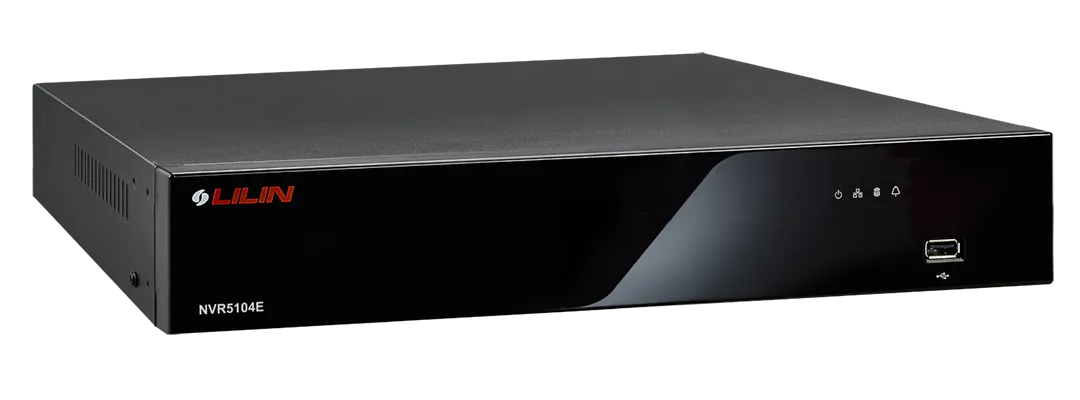

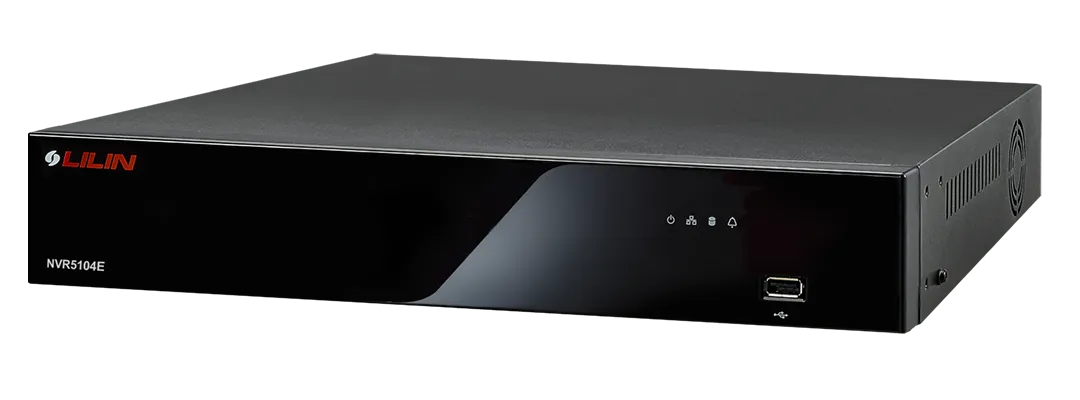

4 CH PoE 4K Standalone Network Video Recorder

Model：NVR5104E

Launched
  • 4 Channel H.264/H.265 network camera Input
  • Up to 4K H.264/H.265 network camera support
  • Up to 1080p 60 fps network camera support
  • HDMI 1.4 4K 30P / VGA 1080p output
  • P2P QR code UID connection for App and Navigator
  • Network maximum input through up to 32Mbps
  • Mobile phone ( iOS, Android ) solutions provided
  • 4 Port PoE, automatic network camera plug and play
  • Chrome, Edge, Firefox, IE, Opera, Safari suppo

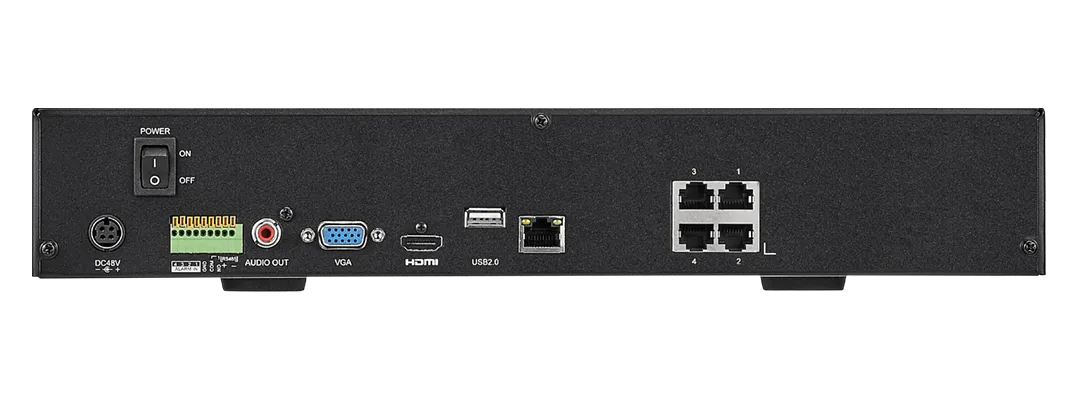

The NVR5104E is a four channel PoE 4K standalone network video recorder supporting recording resolutions from CIF up to 4K, with a maximum of 120 fps across all channels. The 32Mbps network throughput is provided through one Gigabit Ethernet port and four 802.3af PoE ports, enabling cameras to draw power from the recorder. The 360 by 316 by 60 mm chassis weighs about 2.5 kg without a hard drive and accommodates one 3.5-inch drive bay for up to 16TB. Display modes include 1 and 4 windows with sequence and freeze, H.265 and H.264 encoding are supported, and it features four alarm inputs and one output. It runs on DC48V from 0°C to 45°C.
