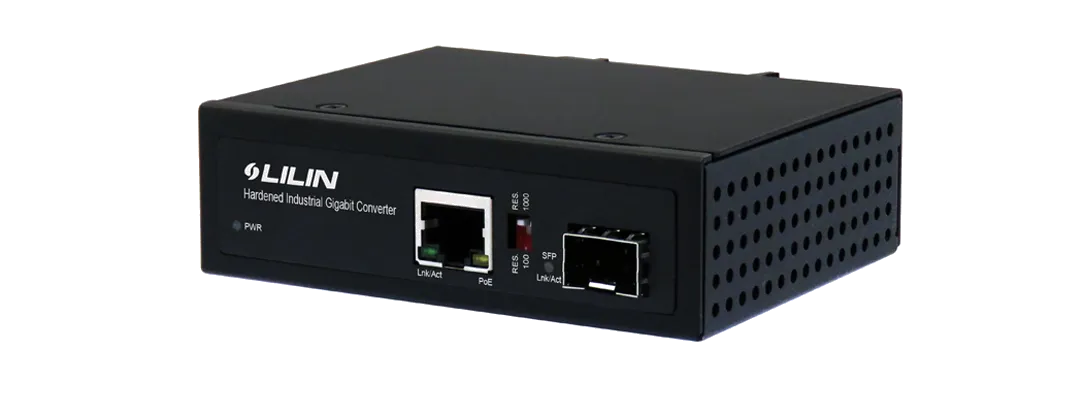

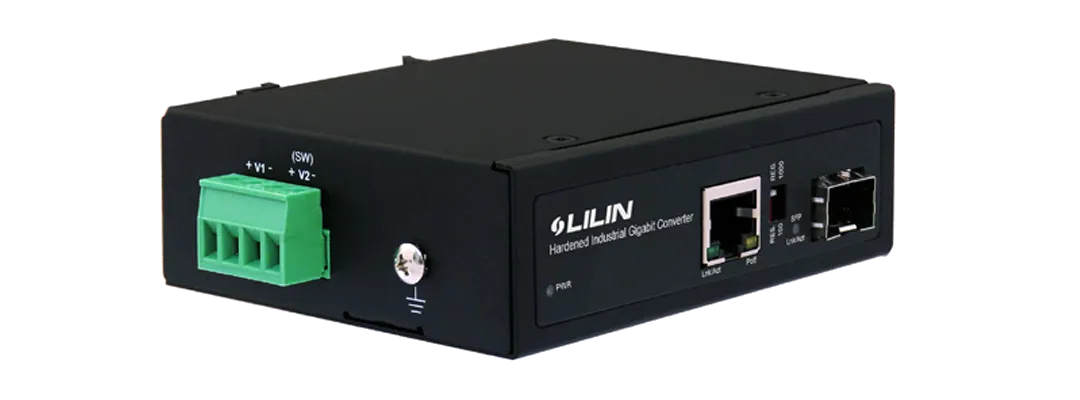

Gigabit PoE Media Converter

The PC6019F is an industrial enhanced Gigabit media converter supporting both IEEE 802.3ab copper Gigabit and IEEE 802.3z fiber Gigabit bidirectional conversion with one SFP port compatible to 100/1000M modules. A 4Gbps backplane and 2K MAC table integrate IEEE 802.3x flow control with store-and-forward packet handling. Power input accepts 48–56VDC with 2W consumed by the converter itself. The 103.5 by 32 by 81.5 mm cast aluminum chassis is rated IP30, operates from 40°C to 75°C, offers both DIN rail and wall mounting, meets EN60950-1 and carries CE, FCC, VCCI compliance with one year warranty.
