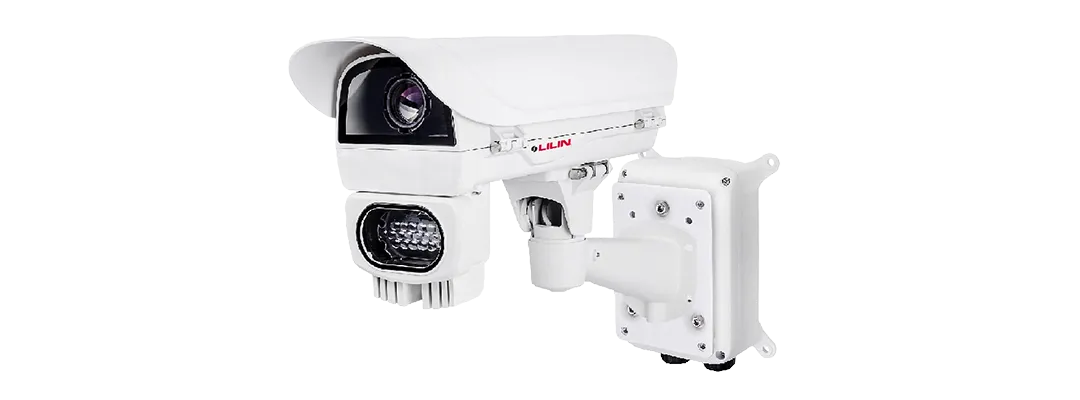

PMH-P2900I
Model：PMH-P2900I
Launched
A safety city depending on ANPR implementation is becoming increasingly important. LILIN provides a series of allin-
one capacious ANPR camera housing fitting most of today's box/fixed cameras even equipped with 8-80mm
varifocal lens. The camera housing is constructed from aluminum die casting to meet IP66/IK10 standards. These
professional models are equipped with heater, blower, wiper, and built-in snapped in 24W IR LEDs specially using
VAIR-IR technology to cover 2-lane ANPR detection. Besides elegant mechanical design, IR illuminator is snapped
in camera housing directly to conceal RS-485 & power cables.
The PMH-P2900I is a camera housing module with a cast aluminum body weighing 5.1 kg, rated IP66, operating from -20°C to 50°C. It features 18 850nm infrared LEDs spanning 10 to 30 degrees horizontally, with RS485 or DIP control and a 100 Lux integrated light sensor for automatic operation. The module supports 24VAC cameras on a 144W output budget: 10W heater, 6W blower, 6 to 8W camera, plus power box and junction box.
