PMH-P2900IW
Model：PMH-P2900IW
Launched
A safety city depending on ANPR implementation is becoming increasingly important. LILIN provides a series of
all-in-one capacious ANPR camera housing fitting most of today's box/fixed cameras even equipped with 8-80mm
varifocal lens. The camera housing is constructed from aluminum die casting to meet IP66/IK10 standards. These
professional models are equipped with heater, blower, wiper, and built-in snapped in 48W IR LEDs specially using
VAIR-IR technology to cover 2-lane ANPR detection. Besides elegant mechanical design, IR illuminator is snapped
in camera housing directly to conceal RS-485 & power cables.
The ANPR camera housing series has 2 sub models supported by AC24V individually. PMH-P2900IW are powered
thru AC24V.

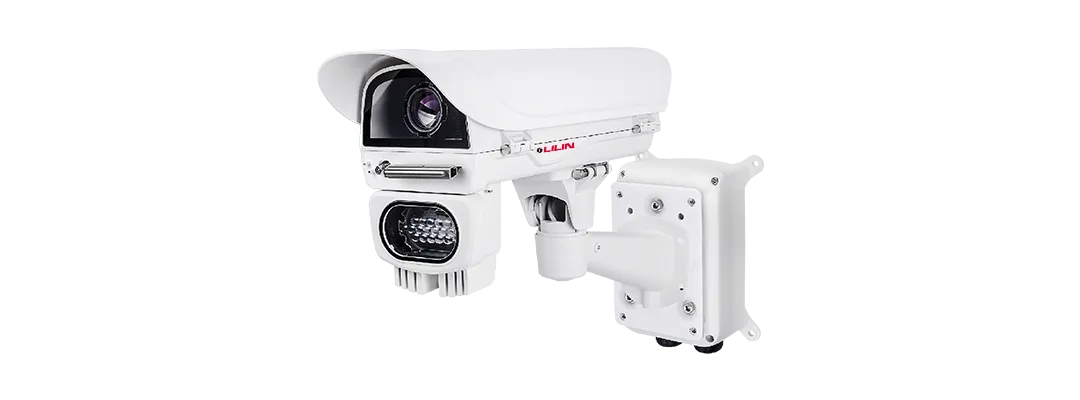

The PMH-P2900IW is a camera housing module with a cast aluminum body weighing 5.1 kg, rated IP66, operating from -20°C to 50°C. Compared with the PMH-P2900I, this model adds wiper control and an optional 10L water tank (12W). It features 18 850nm infrared LEDs with 10 to 30 degree horizontal span, controllable via RS485 or DIP switch, with a 100 Lux light sensor for automatic control. Power is 24VAC on a 144W budget: 10W heater, 6W blower, 6W wiper and 6 to 8W camera.
