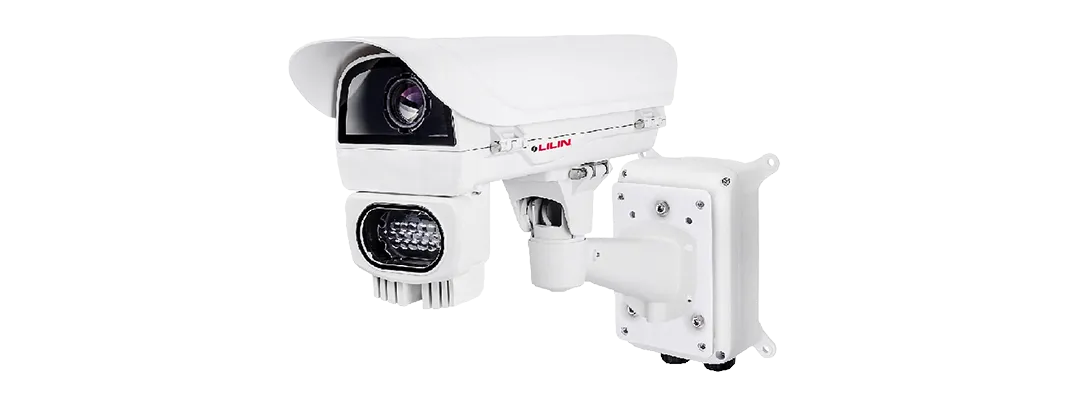

PMH-P6000I24WE
Model：PMH-P6000I24WE
Launched
A safety city depending on ANPR implementation is becoming increasingly important. LILIN provides a series of allin-
one capacious ANPR camera housing fitting most of today's box/fixed cameras even equipped with 8-80mm
varifocal lens. The camera housing is constructed from aluminum die casting to meet IP66/IK10 standards. These
professional models are equipped with heater, blower and built-in snapped in 24W IR LEDs specially using VAIR-IR
technology to cover 2-lane ANPR detection. Besides elegant mechanical design, it also includes a 72W PoE for all
the housing component making cabling much easier on high heigth.
The PMH-P6000I24WE is a camera housing module with a cast aluminum body weighing 5.1 kg, rated IP66 and IK10, operating from -20°C to 50°C. It differs from the PMH-P2900 series in using 115VAC or 230VAC input, supporting 12VDC or 24VAC camera power, and offering a 72 to 95W PoE PSE output budget. It features 18 850nm infrared LEDs with 10 to 30 degree horizontal beam, controllable via RS485 or DIP switch, with a light sensor for automatic operation. Power consumption is 10W heater, 6W blower and 6 to 8W camera, certified to CE and FCC.
