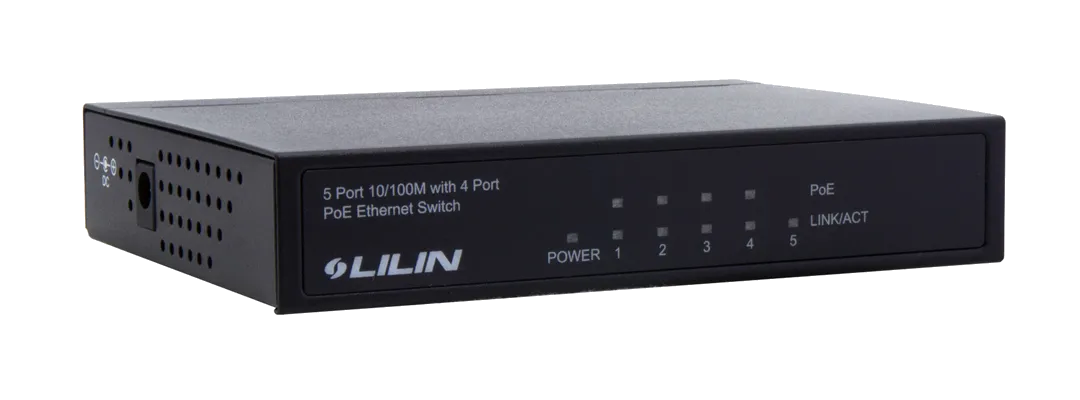

5-Port 10M/100M Desktop PoE Fast Ethernet Switch
Model：PMH-POE570WAT
Launched
- 5 Port 10/100M (Auto-negotiation) Switch
- 4 PSE/PoE function ports
- IEEE 802.3 af/at
- Supporting the power Max. 30 W for each PSE/PoE port Palm with metal case with external power
- Auto-detect full/half-duplex modes for any port
- Dedicated full-duplex 200Mbps bandwidth Store-and-Forward switching methods
- IEEE 802.3x flow control for full-duplex and back-pressure flow control for half-duplex
- Non-blocking full wire speed forwarding Auto-MDI/MDI-X function for any port
The PMH-POE570WAT is a 5-port desktop PoE Fast Ethernet switch supporting 10BaseT and 100BaseTX transmission over Cat. 5/5e/6 UTP/STP cabling, compliant with IEEE 802.3. Each port includes Link/Act and PoE status indicators; the unit provides 48V DC power input/output supporting PoE. The 130 by 97 by 24 mm chassis weighs 1.3 kg with a 1K MAC address table capacity. Operating temperature is 0°C to 45°C, humidity 10% to 90%, and maximum power consumption is 70W. CE and FCC Class A certified with 2 year warranty.
