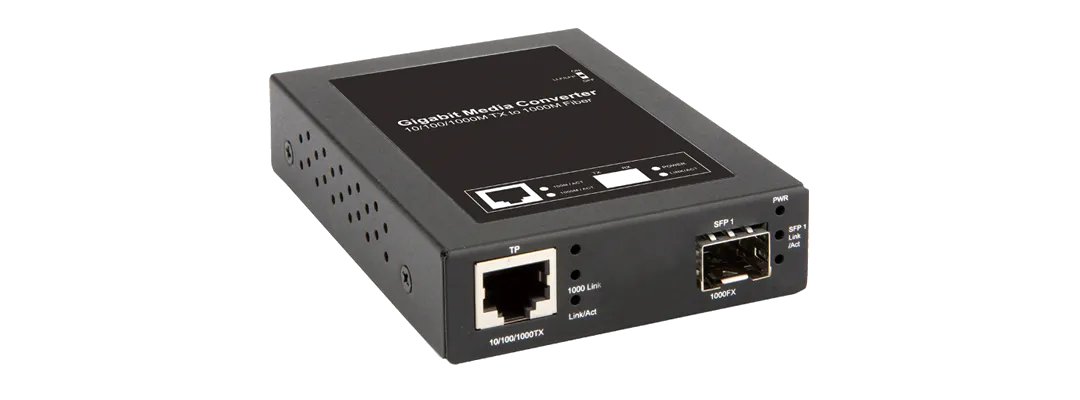

10/100/1000BaseT to 1000SX/LX SFP Media Converter
Model：PMH-RF-G
Launched
- Compliant with IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX/LX Gigabit Ethernet Standards
- One 10/100/1000BaseT Gigabit Ethernet TP Port and One SFP Slot for Gigabit Link
- One SFP slot can support either Multi or Single Mode SFP Modules
- TP Port can support Full-Duplex, Auto-MDI/MDI-X and Auto-Negotiation
The PMH-RF-G is a 10/100/1000 Mbps copper-to-fiber media converter, converting Ethernet signals to an SFP optical module. It carries one 10/100/1000BaseT RJ-45 port and one SFP module slot, measures 102 by 74 by 22 mm and weighs 210 g. Copper runs up to 100 meters on Cat.5/5E/6, while fiber supports WDM bidirectional with TX 1550nm/RX 1310nm at distances of 20, 40 or 60 kilometers. Data transfer reaches 2000 Mbps full-duplex with LED indicators for per-port and unit status, drawing 10W maximum on DC 5V 2A. It operates from 0°C to 45°C and complies with IEEE 802.3u, CE and FCC Class A.
