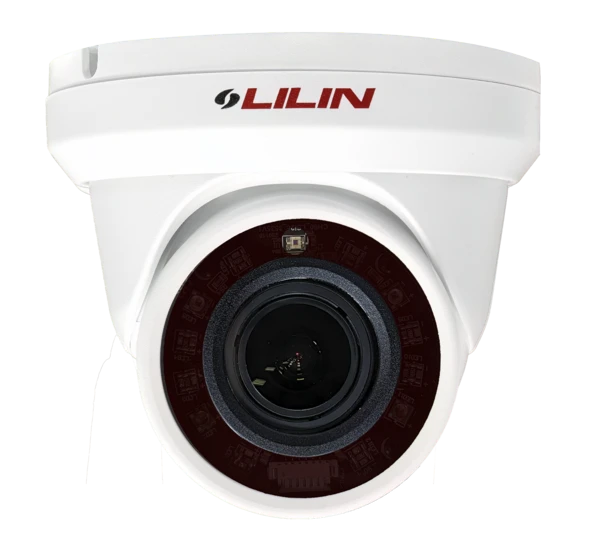

LILIN V Series AI Network Cameras
AI recognition, built into an entry-level camera
The V Series ships with EDGEFENCE perimeter human/vehicle recognition built in and runs without an external server, with IP67 and IK10 outdoor ratings for homes, plants, and perimeter security sites.
-
18
Objects tracked per frame
-
4 fps
Recognition frame rate
-
120dB
HDR dynamic range
-
4K
Maximum resolution
Where the V Series Sits
Focused on the most-used perimeter protection, lowering overall system deployment cost at an entry price.
Advanced AI Models
High-end AI cameras running multiple concurrent algorithms, suited to large-scale security and complex IoT analytics.
General-Purpose AI Workhorse
Perimeter protection and people/vehicle density analytics built in, so one camera covers most security sites.
Your First AI Camera
Focused on perimeter protection with human/vehicle recognition, offering the most-used AI functions at an entry price, with no server required.
Standard Video
No built-in AI analytics; intended for standard video recording and monitoring.
AI Inside the Camera:
Recognition Happens at the Edge
Deep-learning algorithms run directly on the camera chip. Image recognition, behavior detection, and event triggering are all completed at the edge, with no separate AI box or server required.
Recognizable Objects
Recognizes people (standing, running, or sitting) and multiple vehicle types, filtering out false alarms.
Behavior Detection
Tripwire and intrusion rules cover the common perimeter deployment scenarios.
Fast Edge Computing
A dedicated NPU recognizes up to 4 frames per second, capturing dynamic events at the edge.
Flexible Zones and Intervals
Up to 4 independent detection zones, with recognition intervals adjustable from 2 to 30 seconds to match site bandwidth.
EDGEFENCE = AI Virtual Fence
Beyond detecting objects and raising alerts, the system identifies object categories and the cause of each alarm, reducing false alarms caused by environmental noise.
-
Person & Vehicle Classification
Deep-learning algorithms distinguish people from various vehicle types, tracking targets with bounding boxes whether standing, running, or sitting.
-
Versatile Integration and Actions
Send event data via HTTP POST, trigger digital I/O for alarms or floodlights, or integrate with NVR/VMS through the SDK.
-
Cold-Zone Exclusion
Exclude areas such as public roads or swaying vegetation from detection, saving processing resources and bandwidth.
Edge AI Developed In-House by LILIN
Edge AI analytics are developed by the LILIN team, with recognition capabilities continuing to expand.
EDGEFENCE
Perimeter Protection
Native on this Series
EDGEMASK
Mask Detection
Supported on 7/6 Series
EDGEFIRE
Smoke & Fire Detection
Supported on 7/6 Series
EDGELPR
License Plate (LPR)
Supported on 7/6 Series
EDGECAP
Object Counting
Supported on 7/6 Series
EDGESAFETY
Helmet & Vest Detection
Supported on 7/6 Series
EDGECARMAKE
Make & Law Enforcement
Supported on 7/6 Series
EDGEVESSEL
Vessel Recognition
Supported on 7/6 Series* The V Series AI Camera is preloaded with EDGEFENCE. For other advanced AI analytics, please evaluate our Performance 6 Series or Premium 7 Series cameras.
Typical Scenarios
Suited to intrusion prevention, security alerting, and restricted parking control.
Perimeter Protection
Draw virtual fence lines along factory borders, sensitive areas, or backyards. When a person or vehicle crosses, the system triggers an alert to prevent theft and vandalism.

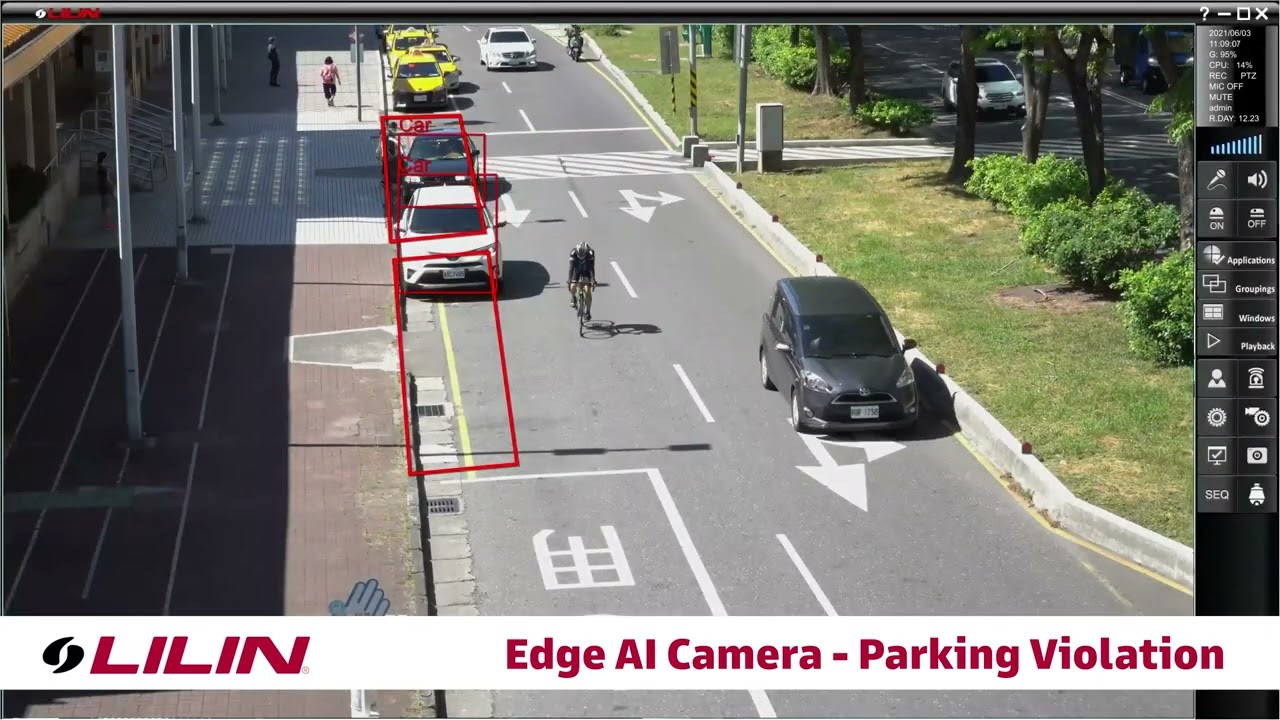

Restricted Parking Control
Define control zones such as lawns, emergency lanes, or entrances. When a person or vehicle dwells beyond the configured threshold, the system raises an alert to deter parking violations.
Field Test Video
* Some advanced applications (e.g. traffic enforcement, vehicle details) require 6/7 series cameras or centralized NAV PC servers.
Hardware Highlights
Beyond AI, the V Series delivers full camera-body performance for long-term operation in harsh outdoor environments.
Night Vision
High-sensitivity sensors with infrared illumination capture clear images in low light.
Rugged & Durable
IP67 water/dust resistance and IK10 vandal-resistance ratings for a wide range of outdoor installations.
High Resolution
5MP to 4K image sensors serve both recording detail and AI recognition accuracy.
HDR Wide Dynamic Range
Controls highlight overexposure while preserving shadow detail, suited to backlit and high-contrast scenes.

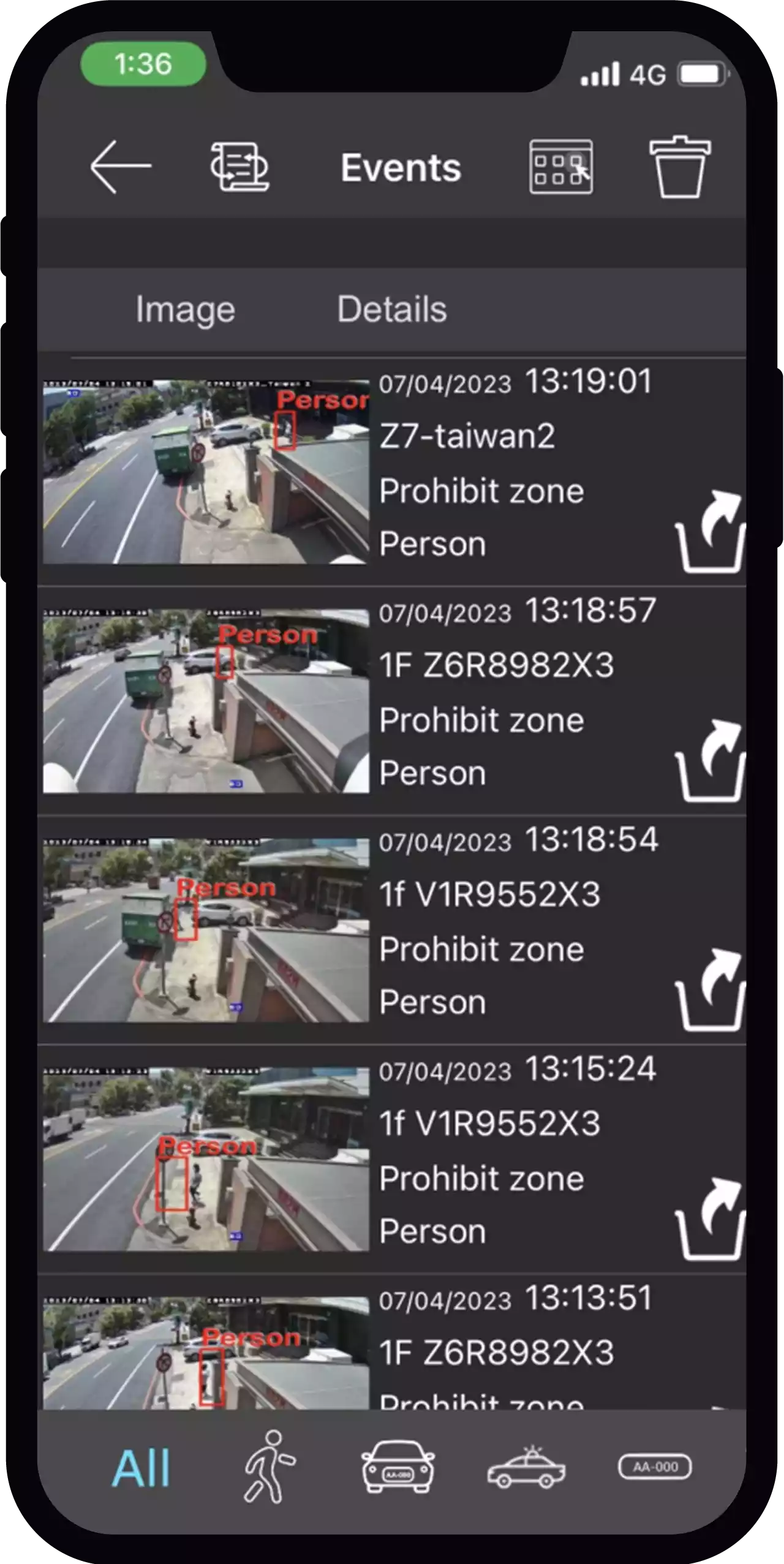

Mobile Monitoring App: LILIN Pro
LILIN Pro runs on phones and tablets, supporting live view and playback; P2P cloud connection removes the need for router port forwarding.

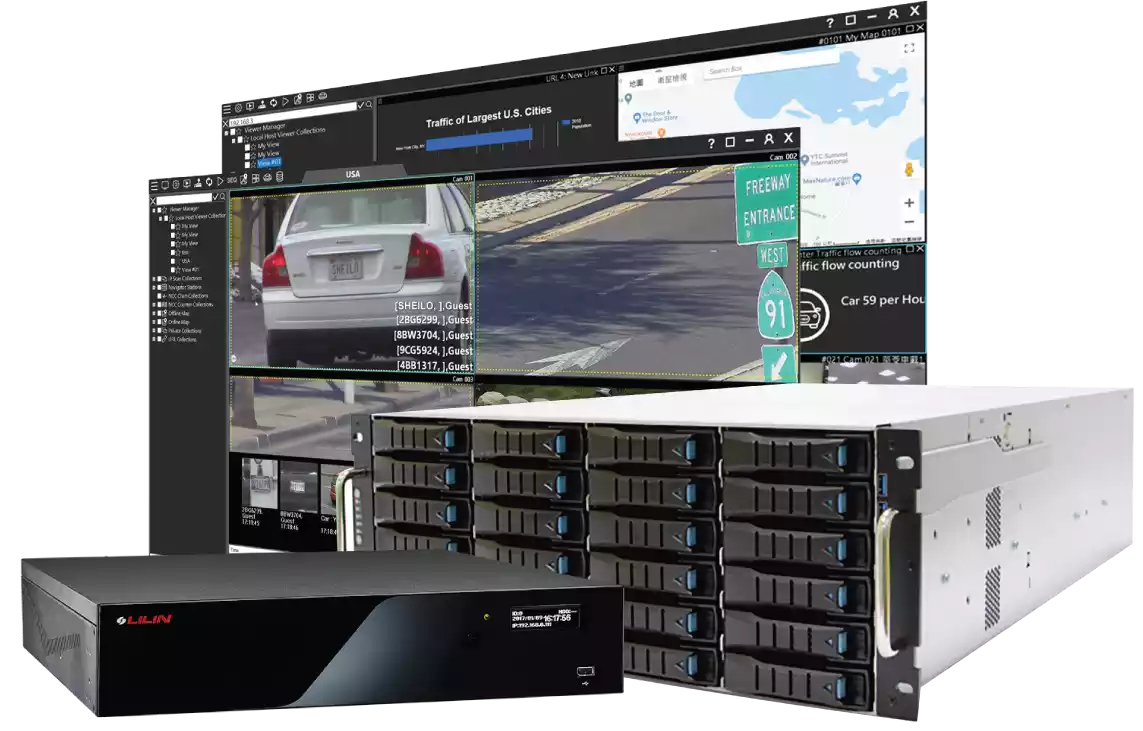

Central Management & Recording with the LILIN Back End
Use LILIN NVRs, NAV VMS, and central management software as the back end to build a complete recording and event management architecture.
- Real-time AI alerts and push notifications
- High compatibility HTML5 web interfaces
- Smooth multi-channel playback
- Flexible scheduling and report exports
V Series Full Product Lineup
Dome, turret, and bullet bodies with fixed and auto-focus lenses; data is synchronized with the product database and filtered automatically for your region.
NDAA Compliant, Made in Taiwan
LILIN products are manufactured in our own factory in Taiwan, in compliance with U.S. NDAA and TAA trade regulations.
NDAA Compliant
TAA Compliant
100% Made in Taiwan
Common Questions Before Deployment
Answers to the practical and technical questions most often raised when planning an AI surveillance system.
