Video Management for Vessels

Low bandwidth satellite transmission for vessels

Designed for the Narrowest Link

Vessels increasingly carry fast primary links such as Starlink, but video transmission cannot depend on a single connection: when the primary link drops or degrades in heavy seas, the fallback is often a satellite phone-class channel, and maritime satellite data is typically metered. A conventional continuous stream cannot survive those conditions, leaving operators without live video from their ships.

Single IP Camera Stream 2~4 Mbps

Satellite Phone Uplink 64~128 Kbps

Core Features

4 Key System Capabilities

Robust hardware and intelligent software engineered to secure vessels and fleet operations under demanding sea conditions.

Satellite Architecture

Vessel

Cameras Camera Array PSR5520

NVR/Codec Encode/Storage NVR3816

Satellite Link 64~128Kbps

Command Center

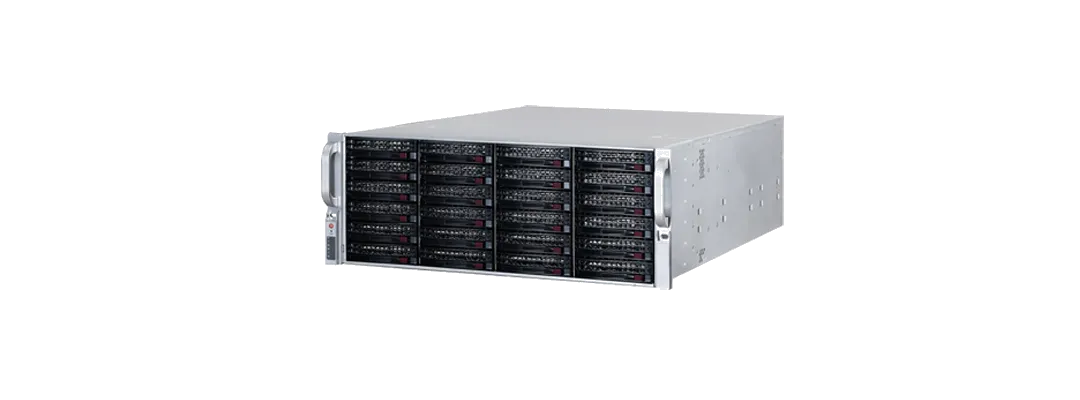

NAV Server Video Hub NAV2x00AI

Navigator Management

Mobile App Remote Viewing LILINViewer

Low-Bandwidth Satellite Video Transmission

The key is the NAV server's low-bandwidth mode: JPEG snapshot streaming replaces continuous video, letting even a 64Kbps link carry up to 16-view display across multiple NVRs. Since satellite phone networks assign no fixed IP, P2P technology handles the connection and delivers vessel video directly to remote clients. Combined with Google Maps GPS real-time vessel tracking, the system preserves remote PTZ control, DI/DO signaling, and remote recording even on a degraded link, ensuring comprehensive fleet safety oversight.

PSR5520 heavy-duty PTZ camera certified for 17-class wind resistance and 150M infrared, designed for harsh marine environments on low masts

PSR552 Series PTZ Camera

Certified with a 17-class wind tunnel test (60m/sec) to withstand severe marine storms. Features rain repellent glass for low maintenance, tilt up 30-degree range for installation on lower masts, and 150M infrared LEDs for crisp visibility on dark seas.

Recommended Device PSR5520 Series

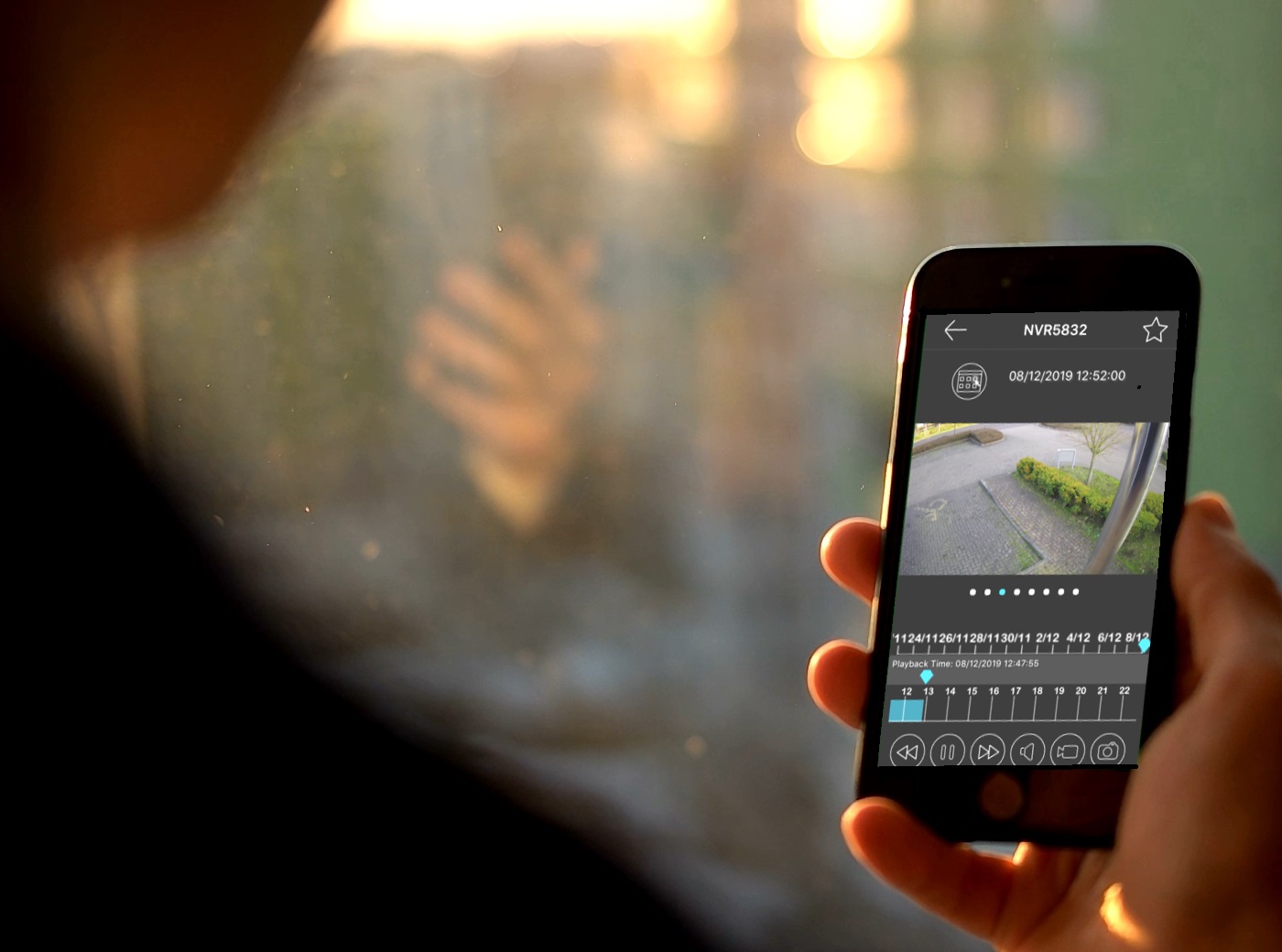

LILIN Mobile Monitoring

Empower management with P2P-enabled mobile monitoring. Access real-time video streams of the fleet, control PTZ position, and toggle DI/DO alarms directly from smartphones or tablets anywhere, anytime—keeping the fleet under constant command.

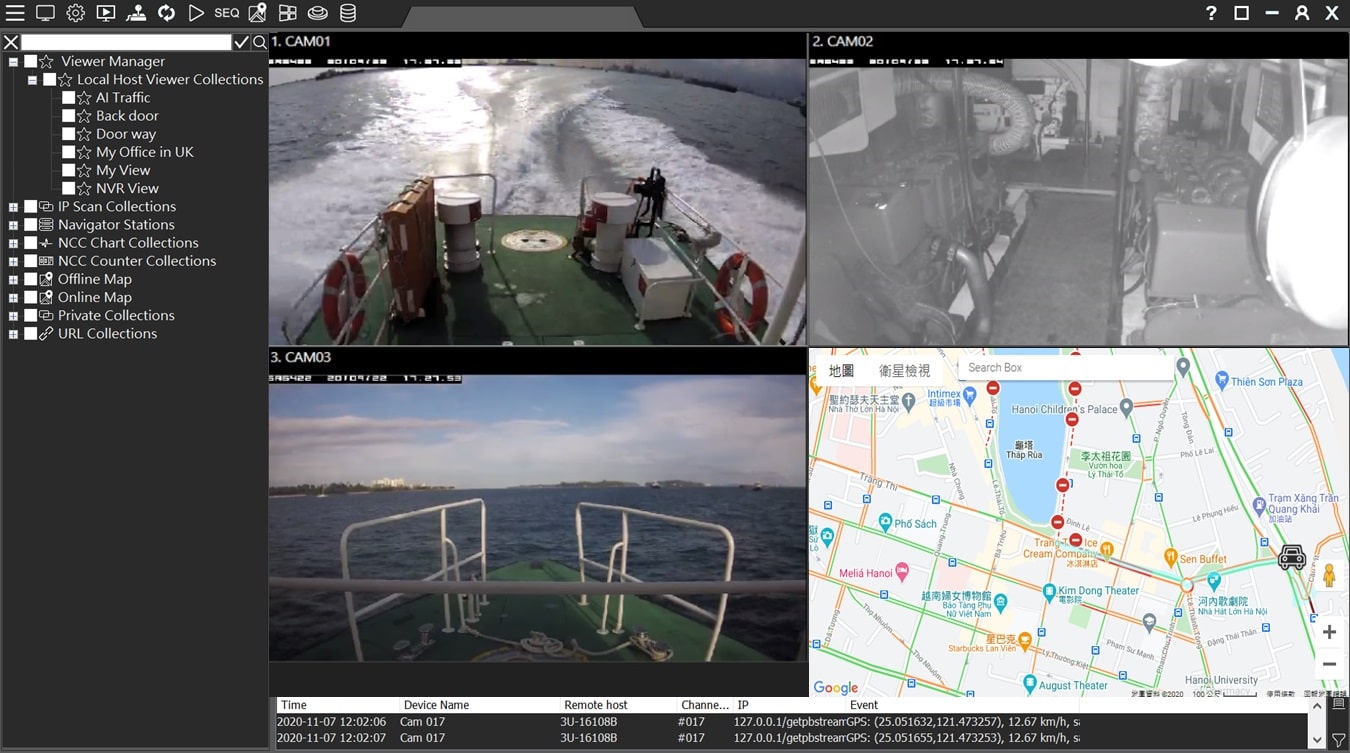

Navigator Command Center

Manage remote NAV server feeds and playbacks from a centralized interface. Display live streams, synchronized playback, and asynchronous playback on a single screen. Supports granular account permissions and multi-screen TV Wall projection for fleet-wide oversight.

Control Software Navigator VMS

Satellite Transmission Specs

64 ~ 128 Kbps satellite upload link capabilities and centralized control platform configuration.

Transmission Capability	Specification
Satellite Upload Bandwidth	64 ~ 128 Kbps
Multi-Screen Display	Up to 16-Split View
Vessel Positioning	Real-time GPS Tracking
Remote Control Signals	PTZ + DI/DO Switching
Command Center Support	Navigator VMS Multi-Server
